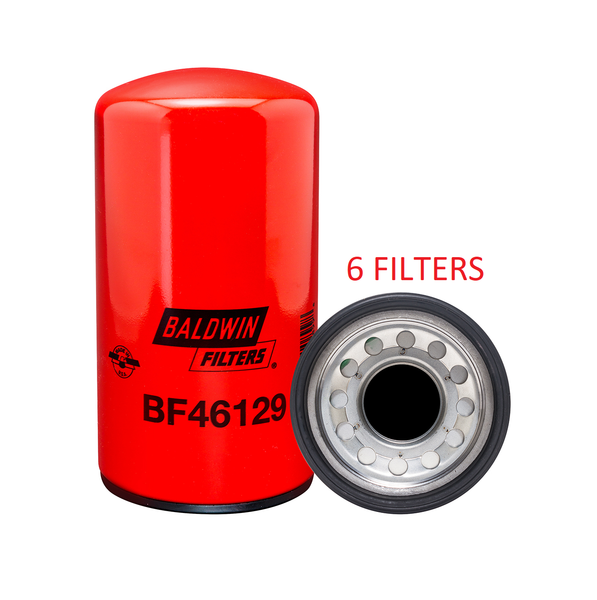

(CASE OF 6) BF46129 BALDWIN FUEL FILTER FF5825NN Upgrade of BF9860 & BF9885 a406
Technical Specifications
- Product Type: Fuel Spin-on
- Notes: Fill Plug pre-installed in filter. Remove after pre-filling filter with fuel prior to installation on application.
- Thread Size: M90 x 2.0
- Outside Diameter: 4 23/32 (119.9)
- Length: 8 27/32 (224.6)
- Gasket: Attached Gasket: [1] Included
- O-ring: [1] Attached
- Related To: BF9885 (Standard Version)
- Micron Rating: <4 Nominal; <4 Absolute
- Application: Freightliner; Kenworth; Peterbilt; Volvo Trucks with Cummins ISX11.9, ISX15.0, QSX11.9, X15 Engines
- Compatible Competitor Part Number: Cummins 5365988; Fleetguard FF5825NN; Donaldson DBF6776
- Brand: Baldwin
Popular Filter Cross References
600515, FF1314, 5365988, DBF6776, WF10515, FF5825NN, SN40780, BF46129, 96728, LFF6776XL, 458R44, MH30032
Popular Applications
Make |
Model |
Year |
Engine |
AUTOCAR |
(Heavy Duty Trucks); DC64R (w/Cummins X12 engine) |
2020 |
|
AUTOCAR LLC. |
XPEDITOR |
20-14 |
6-11.9L |
CUMMINS |
(Trucks); ISX 11.9 |
||
CUMMINS |
(Trucks); ISX 15 (2010-) |
||
CUMMINS |
(Trucks); X15 |
||
FREIGHTLINER |
(Chassis); XC (w/Cummins ISX engine) |
13-17 |
|
FREIGHTLINER |
(Chassis); XC (w/Cummins X15 engine) |
18-19 |
|
FREIGHTLINER |
(Heavy Duty Trucks); Cascadia (w/Cummins ISX eng.) |
2010- |
|
FREIGHTLINER |
(Heavy Duty Trucks); Cascadia (w/Cummins ISX15 eng.) |
15-17 |
|
FREIGHTLINER |
(Heavy Duty Trucks); Cascadia (w/Cummins X15 eng.) |
18-20 |
|
FREIGHTLINER |
(Heavy Duty Trucks); Columbia (w/Cummins ISX engine) |
12-15 |
|
FREIGHTLINER |
(Heavy Duty Trucks); Coronado (w/ Cummins ISX15 eng.) |
11-17 |
|
FREIGHTLINER |
(Heavy Duty Trucks); Coronado 122SD (w/Cummins X15 Engine) |
18-20 |
|
FREIGHTLINER |
(Heavy Duty Trucks); Coronado SD (w/ Cummins ISX eng.) |
11-17 |
|
FREIGHTLINER |
(Heavy Duty Trucks); FLD (w/ Cummins ISX eng.) |
07-11 |
|
FREIGHTLINER |
CASCADIA |
20-09 |
L6-14.9L |
FREIGHTLINER |
COLUMBIA |
14-12 |
L6-14.9L |
FREIGHTLINER |
CORONADO |
16-11 |
6-15.6L |
FREIGHTLINER |
CORONADO |
16-11 |
L6-14.9L |
FREIGHTLINER |
FLD132 |
2007 |
L6-14.9L |
FREIGHTLINER |
FLD132 |
2011 |
L6-14.9L |
FREIGHTLINER |
XC MODULAR RAIL |
19-13 |
L6-14.9L |
FREIGHTLINER |
XC RAISED RAIL |
19-15 |
L6-14.9L |
INTERNATIONAL |
(Heavy Duty Trucks); HX520 (w/Cummins ISX15 eng.) |
18-20 |
|
INTERNATIONAL |
(Heavy Duty Trucks); HX620 (w/Cummins ISX15 eng.) |
17-20 |
|
INTERNATIONAL |
(Heavy Duty Trucks); Lonestar (w/Cummins X15 eng.) |
18-20 |
|
INTERNATIONAL |
(Heavy Duty Trucks); LT625 (w/Cummins X15 eng.) |
17-20 |
|
INTERNATIONAL |
HX520 |
20-18 |
L6-14.9L |
INTERNATIONAL |
HX620 |
19-18 |
L6-14.9L |
INTERNATIONAL |
LONESTAR |
12-09 |
L6-14.9L |
INTERNATIONAL |
LONESTAR |
17-14 |
L6-14.9L |
INTERNATIONAL |
LONESTAR |
20-19 |
L6-14.9L |
INTERNATIONAL |
LT625 |
20-17 |
L6-14.9L |
KENWORTH |
(Heavy Duty Trucks); C500 (w/ Cummmins ISX eng.) |
10-16 |
|
KENWORTH |
(Heavy Duty Trucks); T660 (w/Cummins ISX15 Engine) |
10-18 |
|
KENWORTH |
(Heavy Duty Trucks); T680 (w/Cummins ISX 15 eng.)) |
13-20 |
|
KENWORTH |
(Heavy Duty Trucks); T680 (w/Cummins ISX11.9 eng.) |
14-20 |
|
KENWORTH |
(Heavy Duty Trucks); T700 (w/Cummins ISX15 engine) |
11-15 |
|
KENWORTH |
(Heavy Duty Trucks); T800 (w/Cummins ISX eng.) |
10-20 |
|
KENWORTH |
(Heavy Duty Trucks); T880 (w/Cummins ISX11.9 eng.) |
15-20 |
|
KENWORTH |
(Heavy Duty Trucks); T880 (w/Cummins ISX15 Engine) |
15-20 |
|
KENWORTH |
(Heavy Duty Trucks); W900 (w/Cummins ISX11.9 eng.) |
12-20 |
|
KENWORTH |
(Heavy Duty Trucks); W990 (w/Cummins X15 Engine) |
19-20 |
|
KENWORTH |
C500 |
16-10 |
L6-14.9L |
KENWORTH |
T660 |
18-10 |
L6-14.9L |
KENWORTH |
T680 |
20-14 |
6-11.9L |
KENWORTH |
T680 |
20-13 |
L6-14.9L |
KENWORTH |
T700 |
15-11 |
L6-14.9L |
KENWORTH |
T800 |
20-10 |
L6-14.9L |
KENWORTH |
T880 |
20-15 |
6-11.9L |
KENWORTH |
T880 |
20-15 |
L6-14.9L |
KENWORTH |
W900 |
19-12 |
6-11.9L |
KENWORTH |
W990 |
20-19 |
L6-14.9L |
MACK |
CXU |
18-14 |
6-11.9L |
PETERBILT |
(Heavy Duty Trucks); 320 (w/Cummins ISX11.9 Engine) |
11-19 |
|
PETERBILT |
(Heavy Duty Trucks); 365 (w/Cummins ISX11.9L eng.) |
11-20 |
|
PETERBILT |
(Heavy Duty Trucks); 367 (w/Cummins ISX 11.9 eng.) |
11-20 |
|
PETERBILT |
(Heavy Duty Trucks); 367 (w/Cummins ISX15 eng.) |
10-20 |
|
PETERBILT |
(Heavy Duty Trucks); 389 (w/Cummins ISX 11.9 eng.) |
15-20 |
|
PETERBILT |
(Heavy Duty Trucks); 389 (w/Cummins ISX15 eng.) |
10-20 |
|
PETERBILT |
(Heavy Duty Trucks); 520 (w/Cummins ISX11.9 engine) |
17-20 |
|
PETERBILT |
(Heavy Duty Trucks); 567 (w/Cummins ISX11.9 eng.) |
14-20 |
|
PETERBILT |
(Heavy Duty Trucks); 567 (w/Cummins ISX15 Eng.) |
14-20 |
|
PETERBILT |
(Heavy Duty Trucks); 579 (w/ Cummins ISX 11.9 eng. ) |
14-20 |
|
PETERBILT |
(Heavy Duty Trucks); 579 (w/Cummins ISX15 or X15 eng.) |
18-20 |
|
PETERBILT |
320 |
18-11 |
6-11.9L |
PETERBILT |
365 |
19-11 |
6-11.9L |
PETERBILT |
367 |
2020 |
6-11.9L |
PETERBILT |
367 |
20-10 |
L6-14.9L |
PETERBILT |
389 |
20-15 |
6-11.9L |
PETERBILT |
389 |
20-10 |
L6-14.9L |
PETERBILT |
520 |
20-17 |
6-11.9L |
PETERBILT |
567 |
20-14 |
6-11.9L |
PETERBILT |
567 |
20-14 |
L6-14.9L |
PETERBILT |
579 |
20-14 |
6-11.9L |
PETERBILT |
579 |
20-18 |
L6-14.9L |
PIERCE MFG. INC. |
(Trucks); Velocity (w/Cummins ISX11.9 eng.) |
13-14 |
|
PIERCE MFG. INC. |
VELOCITY |
14-13 |
L6-12.8L |
SPARTAN |
(Motorhome/Chassis/Response); Gladiator (w/Cummins ISX15 eng.) |
11-18 |
|
SPARTAN |
(Motorhome/Chassis/Response); K3 (w/Cummins ISX eng.) |
12-20 |
|
SPARTAN |
(Motorhome/Chassis/Response); K4 (w/Cummins X15 eng.) |
18-20 |
|
SPARTAN MOTORS |
GLADIATOR |
18-11 |
L6-14.9L |
SPARTAN MOTORS |
K3 |
20-12 |
L6-14.9L |
SPARTAN MOTORS |
K4 |
2018 |
L6-14.9L |
SPARTAN MOTORS |
K4 |
2020 |
L6-14.9L |
TEMSA |
(Buses); TS 45 (w/Cummins ISX11.9/ISX12 eng.) |
14-19 |
|
TEMSA BUS |
TS45 |
19-14 |
6-11.9L |
VAN HOOL |
(Buses); Commuter Coach CX45 (w/Cummins ISX11.9 eng.) |
14-19 |
|
VAN HOOL |
(Buses); Tourist Coach TX (w/Cummins ISX11.9 eng.) |
14-19 |
|
VAN HOOL |
COMMUTER COACH CX |
19-14 |
6-11.9L |
VAN HOOL |
TOURIST COACH TX |
18-14 |
6-11.9L |
VOLVO |
(Heavy Duty Trucks); VNL Series (w/Cummins ISX 15 eng.) |
10-20 |
|
VOLVO |
(Heavy Duty Trucks); VNL730, VNL780 (w/ Cummins X15 eng.) 2017- |
||
VOLVO |
(Heavy Duty Trucks); VNX Series (w/Cummins X15 engine) |
2020 |
|
VOLVO |
VNL |
16-10 |
L6-14.9L |
VOLVO |
VNL |
20-18 |
L6-14.9L |
VOLVO |
VNL |
2017 |
L6-16.1L |
WESTERN STAR |
(Heavy Duty Trucks); 4700 (w/ Cummins X12 eng.) |
19-20 |
|
WESTERN STAR |
(Heavy Duty Trucks); 4900 Series (w/ Cummins X15 eng.) |
18-20 |
|
WESTERN STAR |
4900EX |
20-18 |
L6-14.9L |
WESTERN STAR |
4900FA |
20-18 |
L6-14.9L |
WESTERN STAR |
4900SA |
20-18 |
L6-14.9L |
