FF5825NN (CASE OF 6) FLEETGUARD FUEL FILTER BF46129 Cummins ISX11.9, 15.0 & QSX11.9, X15 a159

Sale price $282.99 Regular price $481.95

All cross numbers listed will spin on and seal.  If you need more exact crossovers such as size or micron ratings message me.  The crosses listed are only a guide if specifics don’t matter.  Use the pictures shown as a help in determining if this filter is right for you.

                                                      AYP-PARTS

We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them.  We also purchase filters from stores going out of business or old inventory stores want to get rid of. If you wish to purchase any filters you don’t see listed in our store most likely I can order these filters for you. All Baldwin and Fleetguard filters are sold by the case unless smaller lots are shown. If you don’t need a full case message us and we may be able to sell lesser quantities.  We all want the best prices of anything we buy. If you see any new filters in the store that have a higher price than other stores you see in online, send me a message.

If there are any filters, we need to order, that does not have a message in bold above on supply issues you will be sent a personal text so leave a cell number as your contact.  If I have time, I will update you every week or two on progress or you can send me a text at 636-887-6799.

If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.

Thank You for visiting AYP-Parts.


No Returns offered if the part is not correct without contacting us first before order is made with the part number you need.  The cross-reference numbers listed are only as a guide.  Any charts you see online may not be 100% correct.  Some manufactures use the same part numbers but may be a different part.  We will confirm that this part will work for you when you contact us.



CASE OF 6 FF5825NN FLEETGUARD FUEL FILTER BF46129 Cummins ISX QSX 11.9 15.0 a159

Product Specifications
Condition: New
Brand: Fleetguard
Part Number: FF5825NN
Style: Spin-On Fuel Filter
Service: Fuel
Media: Enhanced Cellulose
Height: 8.84 (225)*
Outer Diameter Top: 4.73 (120)*
Outer Diameter Bottom: Closed
Thread Size: 90x2 MM
( )* denotes metric

Principle Application

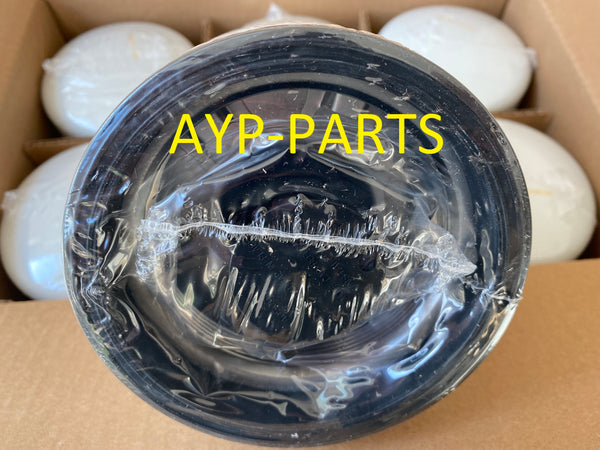

Freightliner; Kenworth; Peterbilt; Volvo Trucks with Cummins ISX11.9, ISX15.0, QSX11.9, X15 Engines. Nano-Pro version of FF5776. Has pre-fill cover on threaded end. Once filter is pre-filled with fuel on the inlet side, remove the cover before installing.

Upgrade of FF5686 & FF5776

Interchange Part Numbers
600515 FF1314 5365988 DBF6776 WF10515

All Application

Make

Model

Year

Engine

AUTOCAR

(Heavy Duty Trucks); DC64R (w/Cummins X12 engine)

2020


AUTOCAR LLC.

XPEDITOR

20-14

6-11.9L

CUMMINS

(Trucks); ISX 11.9



CUMMINS

(Trucks); ISX 15 (2010-)



CUMMINS

(Trucks); X15



FREIGHTLINER

(Chassis); XC (w/Cummins ISX engine)

13-17


FREIGHTLINER

(Chassis); XC (w/Cummins X15 engine)

18-19


FREIGHTLINER

(Heavy Duty Trucks); Cascadia (w/Cummins ISX eng.)

2010-


FREIGHTLINER

(Heavy Duty Trucks); Cascadia (w/Cummins ISX15 eng.)

15-17


FREIGHTLINER

(Heavy Duty Trucks); Cascadia (w/Cummins X15 eng.)

18-20


FREIGHTLINER

(Heavy Duty Trucks); Columbia (w/Cummins ISX engine)

12-15


FREIGHTLINER

(Heavy Duty Trucks); Coronado (w/ Cummins ISX15 eng.)

11-17


FREIGHTLINER

(Heavy Duty Trucks); Coronado 122SD (w/Cummins X15 Engine)

18-20


FREIGHTLINER

(Heavy Duty Trucks); Coronado SD (w/ Cummins ISX eng.)

11-17


FREIGHTLINER

(Heavy Duty Trucks); FLD (w/ Cummins ISX eng.)

07-11


FREIGHTLINER

CASCADIA

20-09

L6-14.9L

FREIGHTLINER

COLUMBIA

14-12

L6-14.9L

FREIGHTLINER

CORONADO

16-11

6-15.6L

FREIGHTLINER

CORONADO

16-11

L6-14.9L

FREIGHTLINER

FLD132

2007

L6-14.9L

FREIGHTLINER

FLD132

2011

L6-14.9L

FREIGHTLINER

XC MODULAR RAIL

19-13

L6-14.9L

FREIGHTLINER

XC RAISED RAIL

19-15

L6-14.9L

INTERNATIONAL

(Heavy Duty Trucks); HX520 (w/Cummins ISX15 eng.)

18-20


INTERNATIONAL

(Heavy Duty Trucks); HX620 (w/Cummins ISX15 eng.)

17-20


INTERNATIONAL

(Heavy Duty Trucks); Lonestar (w/Cummins X15 eng.)

18-20


INTERNATIONAL

(Heavy Duty Trucks); LT625 (w/Cummins X15 eng.)

17-20


INTERNATIONAL

HX520

20-18

L6-14.9L

INTERNATIONAL

HX620

19-18

L6-14.9L

INTERNATIONAL

LONESTAR

12-09

L6-14.9L

INTERNATIONAL

LONESTAR

17-14

L6-14.9L

INTERNATIONAL

LONESTAR

20-19

L6-14.9L

INTERNATIONAL

LT625

20-17

L6-14.9L

KENWORTH

(Heavy Duty Trucks); C500 (w/ Cummmins ISX eng.)

10-16


KENWORTH

(Heavy Duty Trucks); T660 (w/Cummins ISX15 Engine)

10-18


KENWORTH

(Heavy Duty Trucks); T680 (w/Cummins ISX 15 eng.))

13-20


KENWORTH

(Heavy Duty Trucks); T680 (w/Cummins ISX11.9 eng.)

14-20


KENWORTH

(Heavy Duty Trucks); T700 (w/Cummins ISX15 engine)

11-15


KENWORTH

(Heavy Duty Trucks); T800 (w/Cummins ISX eng.)

10-20


KENWORTH

(Heavy Duty Trucks); T880 (w/Cummins ISX11.9 eng.)

15-20


KENWORTH

(Heavy Duty Trucks); T880 (w/Cummins ISX15 Engine)

15-20


KENWORTH

(Heavy Duty Trucks); W900 (w/Cummins ISX11.9 eng.)

12-20


KENWORTH

(Heavy Duty Trucks); W990 (w/Cummins X15 Engine)

19-20


KENWORTH

C500

16-10

L6-14.9L

KENWORTH

T660

18-10

L6-14.9L

KENWORTH

T680

20-14

6-11.9L

KENWORTH

T680

20-13

L6-14.9L

KENWORTH

T700

15-11

L6-14.9L

KENWORTH

T800

20-10

L6-14.9L

KENWORTH

T880

20-15

6-11.9L

KENWORTH

T880

20-15

L6-14.9L

KENWORTH

W900

19-12

6-11.9L

KENWORTH

W990

20-19

L6-14.9L

MACK

CXU

18-14

6-11.9L

PETERBILT

(Heavy Duty Trucks); 320 (w/Cummins ISX11.9 Engine)

11-19


PETERBILT

(Heavy Duty Trucks); 365 (w/Cummins ISX11.9L eng.)

11-20


PETERBILT

(Heavy Duty Trucks); 367 (w/Cummins ISX 11.9 eng.)

11-20


PETERBILT

(Heavy Duty Trucks); 367 (w/Cummins ISX15 eng.)

10-20


PETERBILT

(Heavy Duty Trucks); 389 (w/Cummins ISX 11.9 eng.)

15-20


PETERBILT

(Heavy Duty Trucks); 389 (w/Cummins ISX15 eng.)

10-20


PETERBILT

(Heavy Duty Trucks); 520 (w/Cummins ISX11.9 engine)

17-20


PETERBILT

(Heavy Duty Trucks); 567 (w/Cummins ISX11.9 eng.)

14-20


PETERBILT

(Heavy Duty Trucks); 567 (w/Cummins ISX15 Eng.)

14-20


PETERBILT

(Heavy Duty Trucks); 579 (w/ Cummins ISX 11.9 eng. )

14-20


PETERBILT

(Heavy Duty Trucks); 579 (w/Cummins ISX15 or X15 eng.)

18-20


PETERBILT

320

18-11

6-11.9L

PETERBILT

365

19-11

6-11.9L

PETERBILT

367

2020

6-11.9L

PETERBILT

367

20-10

L6-14.9L

PETERBILT

389

20-15

6-11.9L

PETERBILT

389

20-10

L6-14.9L

PETERBILT

520

20-17

6-11.9L

PETERBILT

567

20-14

6-11.9L

PETERBILT

567

20-14

L6-14.9L

PETERBILT

579

20-14

6-11.9L

PETERBILT

579

20-18

L6-14.9L

PIERCE MFG. INC.

(Trucks); Velocity (w/Cummins ISX11.9 eng.)

13-14


PIERCE MFG. INC.

VELOCITY

14-13

L6-12.8L

SPARTAN

(Motorhome/Chassis/Response); Gladiator (w/Cummins ISX15 eng.)

11-18


SPARTAN

(Motorhome/Chassis/Response); K3 (w/Cummins ISX eng.)

12-20


SPARTAN

(Motorhome/Chassis/Response); K4 (w/Cummins X15 eng.)

18-20


SPARTAN MOTORS

GLADIATOR

18-11

L6-14.9L

SPARTAN MOTORS

K3

20-12

L6-14.9L

SPARTAN MOTORS

K4

2018

L6-14.9L

SPARTAN MOTORS

K4

2020

L6-14.9L

TEMSA

(Buses); TS 45 (w/Cummins ISX11.9/ISX12 eng.)

14-19


TEMSA BUS

TS45

19-14

6-11.9L

VAN HOOL

(Buses); Commuter Coach CX45 (w/Cummins ISX11.9 eng.)

14-19


VAN HOOL

(Buses); Tourist Coach TX (w/Cummins ISX11.9 eng.)

14-19


VAN HOOL

COMMUTER COACH CX

19-14

6-11.9L

VAN HOOL

TOURIST COACH TX

18-14

6-11.9L

VOLVO

(Heavy Duty Trucks); VNL Series (w/Cummins ISX 15 eng.)

10-20


VOLVO

(Heavy Duty Trucks); VNL730, VNL780 (w/ Cummins X15 eng.) 2017-



VOLVO

(Heavy Duty Trucks); VNX Series (w/Cummins X15 engine)

2020


VOLVO

VNL

16-10

L6-14.9L

VOLVO

VNL

20-18

L6-14.9L

VOLVO

VNL

2017

L6-16.1L

WESTERN STAR

(Heavy Duty Trucks); 4700 (w/ Cummins X12 eng.)

19-20


WESTERN STAR

(Heavy Duty Trucks); 4900 Series (w/ Cummins X15 eng.)

18-20


WESTERN STAR

4900EX

20-18

L6-14.9L

WESTERN STAR

4900FA

20-18

L6-14.9L

WESTERN STAR

4900SA

20-18

L6-14.9L
