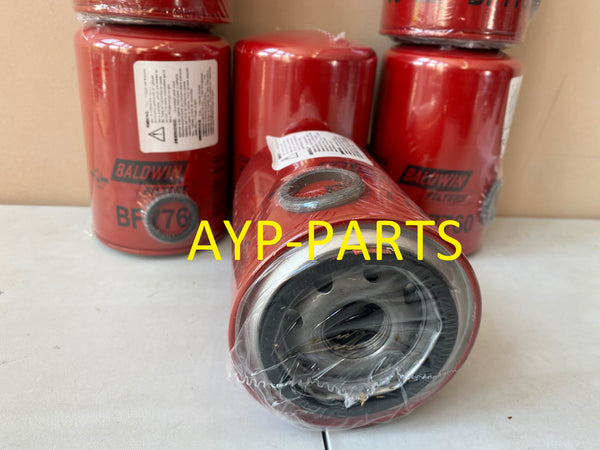

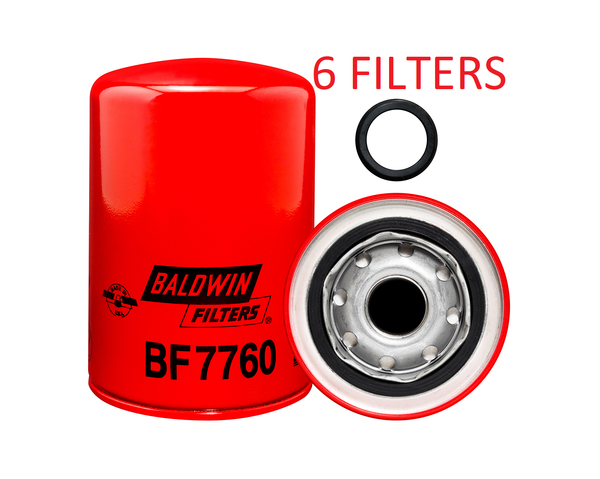

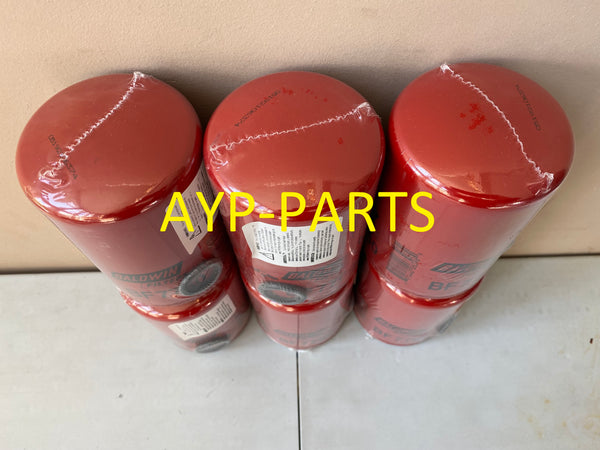

(6 PACK) BF7760 BALDWIN FUEL FILTER FF2203 for Kenworth & Peterbilt ISX Engines a565

Sale price $94.99 Regular price $151.95

All cross numbers listed will spin on and seal.  If you need more exact crossovers such as size or micron ratings message me.  The crosses listed are only a guide if specifics don’t matter.  Use the pictures shown as a help in determining if this filter is right for you.

                                                        AYP-PARTS

We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them.  We also purchase filters from stores going out of business or old inventory stores want to get rid of. If you wish to purchase any filters you don’t see listed in our store most likely I can order these filters for you. All Baldwin and Fleetguard filters are sold by the case unless smaller lots are shown. If you don’t need a full case message us and we may be able to sell lesser quantities.  We all want the best prices of anything we buy. If you see any new filters in the store that have a higher price than other stores you see in online, send me a message.

If there are any filters, I need to order you will be updated by a personal text on progress.  First if I need to order them and about once a week thereafter.  Please leave a cell phone as your contact.

If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.

Thank You for visiting AYP-Parts.


No Returns offered if the part is not correct without contacting us first before order is made with the part number you need.  The cross-reference numbers listed are only as a guide.  Any charts you see online may not be 100% correct.  Some manufactures use the same part numbers but may be a different part.  We will confirm that this part will work for you when you contact us.


(6 PACK) BF7760 BALDWIN FUEL FILTER FF2203 for Kenworth & Peterbilt ISX Engines a565

Product Specifications
Condition: New
Brand: Baldwin
Part Number: BF7760
Style: Spin-On Fuel Filter
Service: Fuel
Type: Full Flow
Media: Wire Mesh
Height: 5.78” (147mm)*
Outer Diameter Top: 3.72” (94mm)*
Outer Diameter Bottom: Closed
Thread Size: 1-14
Max Flow Rate: 12-15 GPM
Nominal Micron Rating: 140
( )* denotes metric

Gasket Diameters
               O.D.                 I.D.                  Thk.
Attached 2.83” (72mm)* 2.46” (62mm)* 0.17” (4mm)*

Interchange Part Numbers

BF7760 P552203 86691 LFF2203 FFR82203 P10272 4010476 2191P552203 85114079 ABP/N10GFF2203 FF1128 3691 F65983 33691

Principle Applications
Kenworth, Peterbilt, IHC Trucks with ISX Cummins Engines

All Applications

Make

Model

Year

Engine

CUMMINS TRUCK ENGINES

ISX ENFORCER

CUMMINS+(Also See Consolidated+Engines)

QST30 Tier II/Stage IIIA

CUMMINS+Generators

DFH SERIES

V12 30.5L (1860 CID)

HATZ+Engines

4L40S

IHC/NAVISTAR TRUCKS

5500I

2003 - 2007

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

5600I

2004 - 2007

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

5900I

2004 - 2007

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

9100I

2000 - 2003

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

9200I

2003 - 2011

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

9400I

2010 - 2011

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

9900I

2000 - 2016

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

9900IX

2000 - 2012

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

LONESTAR

2009 - 2014

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

PAYSTAR 5500I

2008 - 2011

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

PAYSTAR 5600I

2008 - 2011

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

PAYSTAR 5900I

2008 - 2014

L6 14.9L 915 CID Cummins

IHC/NAVISTAR TRUCKS

PROSTAR

2007 - 2016

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

C500 SERIES

2002 - 2009

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

T2000

1999 - 2009

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

T600 SERIES

2000 - 2008

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

T660

2007 - 2009

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

T800 SERIES

1999 - 2009

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

W900 SERIES

1999 - 2009

L6 14.9L 915 CID Cummins

KENWORTH TRUCKS

W900 SERIES

2000 - 2006

L6 15L 915 CID Cummins

PETERBILT TRUCKS

357

2002 - 2007

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

367

2008 - 2012

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

378

2002 - 2007

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

379

2002 - 2008

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

379X

2002 - 2007

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

384

2011 - 2016

L6 8.9L 540 CID Cummins Turbo Diesel

PETERBILT TRUCKS

385

2001 - 2008

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

386

2006 - 2009

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

387

2001 - 2009

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

387

2001 - 2002

L6 15L 915 CID Cummins

PETERBILT TRUCKS

388

2008 - 2009

L6 14.9L 915 CID Cummins

PETERBILT TRUCKS

389

2008 - 2009

L6 14.9L 915 CID Cummins

VOLVO TRUCKS

VN, VNL SERIES

1998 - 2009

L6 14.9L 915 CID Cummins

VOLVO TRUCKS

VNM SERIES

1998 - 2009

L6 14.9L 915 CID Cummins

VOLVO TRUCKS

VT SERIES

2006 - 2009

L6 14.9L 915 CID Cummins

WESTERN STAR TRUCKS

6900XD

2016 - 2016

L6 14.9L 14900CC 915CID
