Baldwin is having supply issues for filling orders on this filter. We have many of these filters ordered. We are line to receive them. Once it is our turn, they will ship what is available. If you subscribe to our website, you will be notified when they become in stock or can be ordered. Customers that already made the purchase we will ship to them first. If any filters are left, subscribers will be notified. If you have any questions, please send me a text at 636-887-6799.
All cross numbers listed will spin on and seal. If you need more exact crossovers such as size or micron ratings message me. The crosses listed are only a guide if specifics don’t matter. Use the pictures shown as a help in determining if this filter is right for you.
We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them. We also purchase filters from stores going out of business or old inventory stores want to get rid of. If you wish to purchase any filters you don’t see listed in our store most likely I can order these filters for you. All Baldwin and Fleetguard filters are sold by the case unless smaller lots are shown. If you don’t need a full case message us and we may be able to sell lesser quantities. We all want the best prices of anything we buy. If you see any new filters in the store that have a higher price than other stores you see in online, send me a message.
If there are any filters, I need to order you will be updated by a personal text on progress. First if I need to order them and about once a week thereafter. Please leave a cell phone as your contact.
If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.
Thank You for visiting AYP-Parts.
No Returns offered if the part is not correct without contacting us first before order is made with the part number you need. The cross-reference numbers listed are only as a guide. Any charts you see online may not be 100% correct. Some manufactures use the same part numbers but may be a different part. We will confirm that this part will work for you when you contact us.

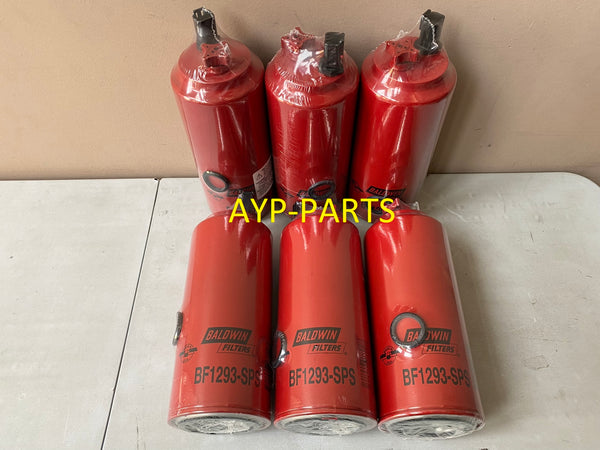

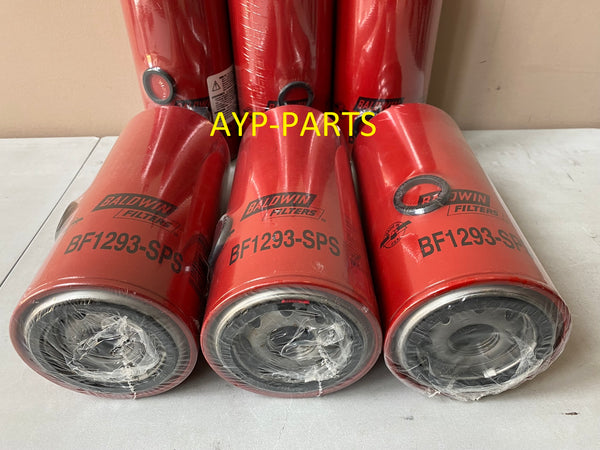

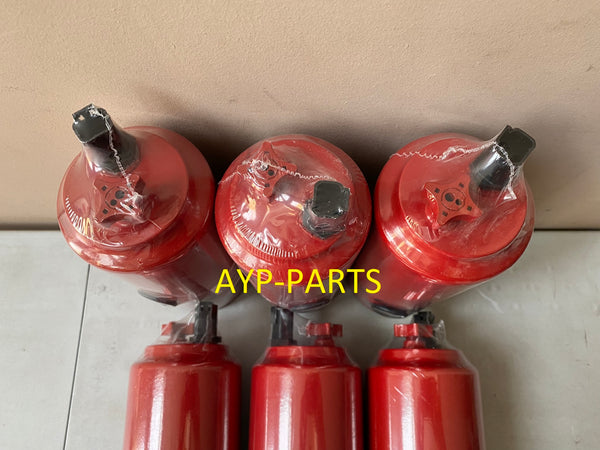

(6 PACK) BF1293-SPS BALDWIN FUEL FILTER FS1003 FS1022 FS19596 Square sensor port a136
Part Number: BF1293-SPS
Style: Spin-On Fuel/Water Separator Filter
Type: Full Flow
Media: Enhanced Cellulose
Height: 9.73 (247)*
Outer Diameter Top: 3.69 (94)*
Outer Diameter Bottom: Closed
Thread Size: 1-14
Burst Pressure-PSI: 200
Max Flow Rate: 12-15 GPM
Nominal Micron Rating: 8
( )* denotes metric
O.D. I.D. Thk.
Attached 2.845 (72)* 2.500 (64)* 0.240 (6)*
Packed 1.29 (33)* 0.96 (24)* 0.218 (6)*
Various Cummins Engines - has drain and sensor port. This sensor port is square with rounded corners - if oval shaped sensor port required - use BF1272-SPS.
Interchange Part Numbers
3406889 P551003 PS8687 FF1164SPS LFF1003 3604 33604 33604XE TP1027 95604 86604 86604XE 87307432 87307433 VF2818 3954891 3954904 4070801 4934544 4934879 4934949 340688900 1814637 FSR81003 FSR819596 GPP1003S SN40541 22637904 FS354 SP125648 WK9017X 3604XE 76195122 87302104 F75915 J8621003 A222100000544 SK3298 FS1003B FS551103 2056637
