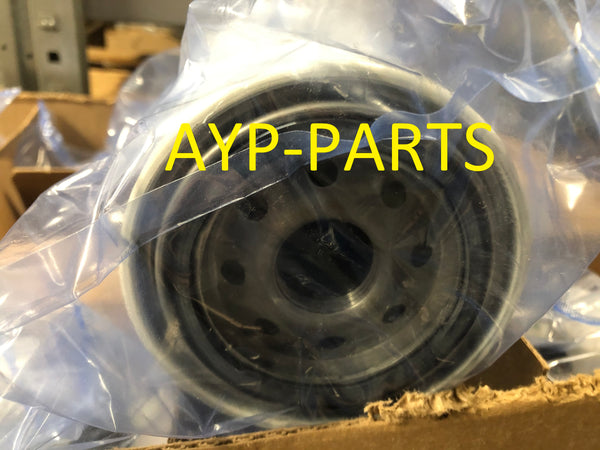

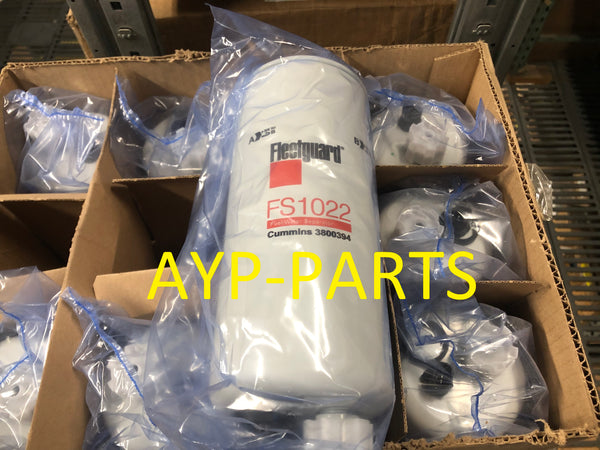

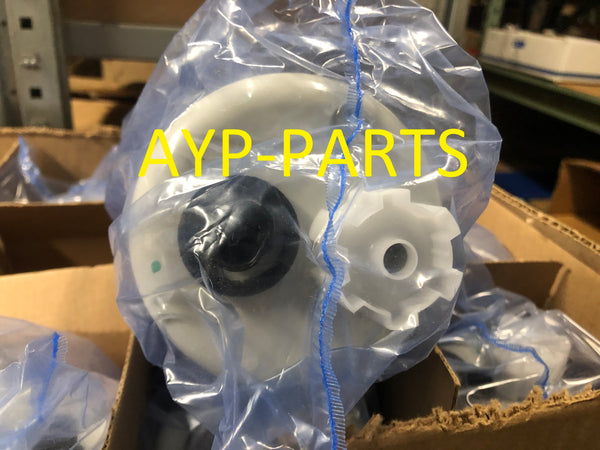

FS1022 (4 PACK) BALDWIN FUEL FILTER BF1272-SPS oval sensor port a246

Sale price $95.99 Regular price $137.25

All cross numbers listed will spin on and seal.  If you need more exact crossovers such as size or micron ratings message me.  The crosses listed are only a guide if specifics don’t matter.  Use the pictures shown as a help in determining if this filter is right for you.


We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them.  We also purchase filters from stores going out of business or old inventory stores want to get rid of. If you wish to purchase any filters you don’t see listed in our store most likely I can order these filters for you. All Baldwin and Fleetguard filters are sold by the case unless smaller lots are shown. If you don’t need a full case message us and we may be able to sell lesser quantities.  We all want the best prices of anything we buy. If you see any new filters in the store that have a higher price than other stores you see in online, send me a message.

If there are any filters, we need to order, that does not have a message in bold above on supply issues you will be sent a personal text so leave a cell number as your contact.  If I have time, I will update you every week or two on progress or you can send me a text at 636-887-6799.

If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.

Thank You for visiting AYP-Parts.

No Returns offered if the part is not correct without contacting us first before order is made with the part number you need.  The cross-reference numbers listed are only as a guide.  Any charts you see online may not be 100% correct.  Some manufactures use the same part numbers but may be a different part.  We will confirm that this part will work for you when you contact us.


FS1022 (4 PACK) BALDWIN FUEL FILTER BF1272-SPS oval sensor port a246

Product Specifications
Condition: New
Brand: Fleetguard
Part Number: FS1022
Style: Spin-On Fuel/Water Separator Filter
Service: Fuel
Media: Enhanced Cellulose
Height: 9.378 (238)*
Outer Diameter Top: 3.657 (93)*
Outer Diameter Bottom: Closed
Thread Size: 1-14
Nominal Micron Rating: 2
( )* denotes metric

Gasket Diameters
                O.D.            I.D.            Thk.
Attached 2.834 (72)* 2.400 (61)* 0.210 (5)*

Principle Application
Various Cummins Engines - Has drain + sensor port - this sensor port is oval shaped (M14 x 2.0). CAUTION: Furnished D-Ring must be installed on post for seal. For use with Delphi oval sensor. Not interchangeable with FS1003.

Interchange Part Numbers
J800394 3800394 P551022 P552032 P551122 PS8689 FF1108SPS LFF1022 33422 3422 TF1029 ALG9072 ABPN10GFS1022 FI15170 SFS4749 BFE072 86422 VF2819 3944269 SFS4749 GPP1022S SN40514 11NA70010 22177711 6744716040 4136520 707153A1 MB504749 F75984 Z397 SFC570210 SK3252 S1680B 15500391 FS551122
