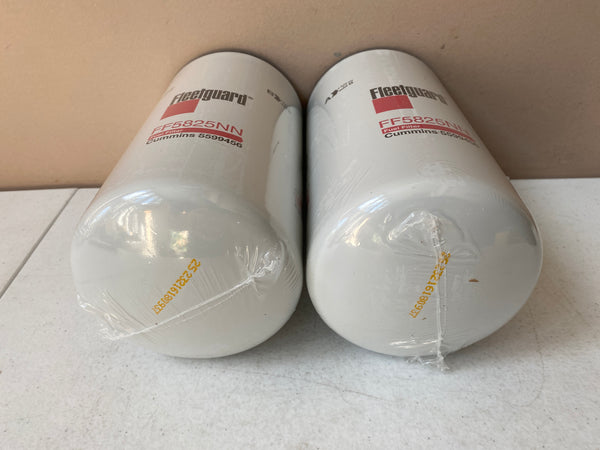

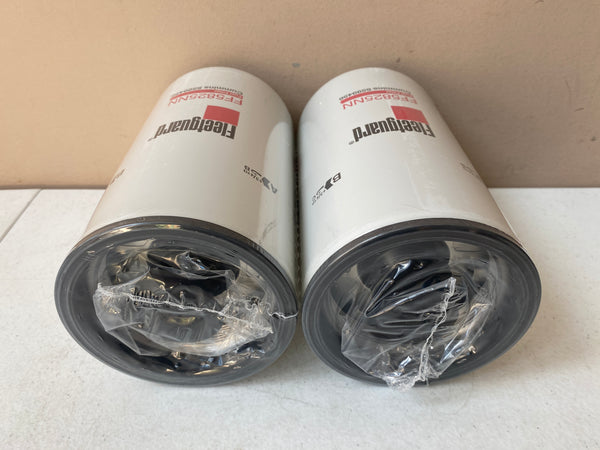

All cross numbers listed will fit and seal. If you need more exact crossovers such as size or micron ratings message me. The crosses listed are only a guide if specifics don’t matter. Use the pictures shown as a help in determining if this filter is right for you.
AYP-PARTS
We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them. If you wish to purchase any filters you don’t see listed in our store, it’s possible we have them in stock, if not we can order the filters for you. We all want the best prices of anything we buy. If you see any new filters in our store that have a higher price than other stores you see online, send me a text. Filters are also sold locally that could limit availability of filters you see online.
If there are any filters we need to order or are short on stated inventory, I will text you personally and not from a robot. Please leave a cell phone as your contact. Otherwise, you will need to contact me for status. Contacting me by text is best way.
Filters ordered Friday, Saturday, Sunday and before 10am Monday will ship out on Tuesday.
Filters ordered Monday, Tuesday and Wednesday before 10am will ship out on Thursday.
Filters ordered Wednesday, Thursday before 10am will ship out on Friday.
If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.
Thank You for visiting AYP-Parts.
No Returns offered if the part is not correct without contacting us first before order is made with the part number you need. The cross-reference numbers listed are only as a guide. Any charts you see online may not be 100% correct. Some manufactures use the same part numbers but may be a different part. We will confirm that this part will work for you when you contact us.
(2 PACK) FF5825NN FLEETGUARD FUEL FILTER BF46129 Cummins ISX11.9 15.0 QSX11.9 X15 a188
Product Specifications
Condition: New
Brand: Fleetguard
Part Number: FF5825NN
Style: Spin-On Fuel Filter
Service: Fuel
Media: Enhanced Cellulose
Height: 8.84 (225)*
Outer Diameter Top: 4.73 (120)*
Outer Diameter Bottom: Closed
Thread Size: 90x2 MM
( )* denotes metric
Principle Application
Freightliner; Kenworth; Peterbilt; Volvo Trucks with Cummins ISX11.9, ISX15.0, QSX11.9, X15 Engines. Nano-Pro version of FF5776. Has pre-fill cover on threaded end. Once filter is pre-filled with fuel on the inlet side, remove the cover before installing.
Upgrade of FF5686 & FF5776
Interchange Part Numbers
600515 FF1314 5365988 DBF6776 WF10515, 96728, BF46129, LFF6776XL, FF5825NN, 600515, DBF6776, MH30032
All Application
|
Make |
Model |
Year |
Engine |
|
AUTOCAR |
(Heavy Duty Trucks); DC64R (w/Cummins X12 engine) |
2020 |
|
|
AUTOCAR LLC. |
XPEDITOR |
20-14 |
6-11.9L |
|
CUMMINS |
(Trucks); ISX 11.9 |
||
|
CUMMINS |
(Trucks); ISX 15 (2010-) |
||
|
CUMMINS |
(Trucks); X15 |
||
|
FREIGHTLINER |
(Chassis); XC (w/Cummins ISX engine) |
13-17 |
|
|
FREIGHTLINER |
(Chassis); XC (w/Cummins X15 engine) |
18-19 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Cascadia (w/Cummins ISX eng.) |
2010- |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Cascadia (w/Cummins ISX15 eng.) |
15-17 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Cascadia (w/Cummins X15 eng.) |
18-20 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Columbia (w/Cummins ISX engine) |
12-15 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Coronado (w/ Cummins ISX15 eng.) |
11-17 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Coronado 122SD (w/Cummins X15 Engine) |
18-20 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); Coronado SD (w/ Cummins ISX eng.) |
11-17 |
|
|
FREIGHTLINER |
(Heavy Duty Trucks); FLD (w/ Cummins ISX eng.) |
07-11 |
|
|
FREIGHTLINER |
CASCADIA |
20-09 |
L6-14.9L |
|
FREIGHTLINER |
COLUMBIA |
14-12 |
L6-14.9L |
|
FREIGHTLINER |
CORONADO |
16-11 |
6-15.6L |
|
FREIGHTLINER |
CORONADO |
16-11 |
L6-14.9L |
|
FREIGHTLINER |
FLD132 |
2007 |
L6-14.9L |
|
FREIGHTLINER |
FLD132 |
2011 |
L6-14.9L |
|
FREIGHTLINER |
XC MODULAR RAIL |
19-13 |
L6-14.9L |
|
FREIGHTLINER |
XC RAISED RAIL |
19-15 |
L6-14.9L |
|
INTERNATIONAL |
(Heavy Duty Trucks); HX520 (w/Cummins ISX15 eng.) |
18-20 |
|
|
INTERNATIONAL |
(Heavy Duty Trucks); HX620 (w/Cummins ISX15 eng.) |
17-20 |
|
|
INTERNATIONAL |
(Heavy Duty Trucks); Lonestar (w/Cummins X15 eng.) |
18-20 |
|
|
INTERNATIONAL |
(Heavy Duty Trucks); LT625 (w/Cummins X15 eng.) |
17-20 |
|
|
INTERNATIONAL |
HX520 |
20-18 |
L6-14.9L |
|
INTERNATIONAL |
HX620 |
19-18 |
L6-14.9L |
|
INTERNATIONAL |
LONESTAR |
12-09 |
L6-14.9L |
|
INTERNATIONAL |
LONESTAR |
17-14 |
L6-14.9L |
|
INTERNATIONAL |
LONESTAR |
20-19 |
L6-14.9L |
|
INTERNATIONAL |
LT625 |
20-17 |
L6-14.9L |
|
KENWORTH |
(Heavy Duty Trucks); C500 (w/ Cummmins ISX eng.) |
10-16 |
|
|
KENWORTH |
(Heavy Duty Trucks); T660 (w/Cummins ISX15 Engine) |
10-18 |
|
|
KENWORTH |
(Heavy Duty Trucks); T680 (w/Cummins ISX 15 eng.)) |
13-20 |
|
|
KENWORTH |
(Heavy Duty Trucks); T680 (w/Cummins ISX11.9 eng.) |
14-20 |
|
|
KENWORTH |
(Heavy Duty Trucks); T700 (w/Cummins ISX15 engine) |
11-15 |
|
|
KENWORTH |
(Heavy Duty Trucks); T800 (w/Cummins ISX eng.) |
10-20 |
|
|
KENWORTH |
(Heavy Duty Trucks); T880 (w/Cummins ISX11.9 eng.) |
15-20 |
|
|
KENWORTH |
(Heavy Duty Trucks); T880 (w/Cummins ISX15 Engine) |
15-20 |
|
|
KENWORTH |
(Heavy Duty Trucks); W900 (w/Cummins ISX11.9 eng.) |
12-20 |
|
|
KENWORTH |
(Heavy Duty Trucks); W990 (w/Cummins X15 Engine) |
19-20 |
|
|
KENWORTH |
C500 |
16-10 |
L6-14.9L |
|
KENWORTH |
T660 |
18-10 |
L6-14.9L |
|
KENWORTH |
T680 |
20-14 |
6-11.9L |
|
KENWORTH |
T680 |
20-13 |
L6-14.9L |
|
KENWORTH |
T700 |
15-11 |
L6-14.9L |
|
KENWORTH |
T800 |
20-10 |
L6-14.9L |
|
KENWORTH |
T880 |
20-15 |
6-11.9L |
|
KENWORTH |
T880 |
20-15 |
L6-14.9L |
|
KENWORTH |
W900 |
19-12 |
6-11.9L |
|
KENWORTH |
W990 |
20-19 |
L6-14.9L |
|
MACK |
CXU |
18-14 |
6-11.9L |
|
PETERBILT |
(Heavy Duty Trucks); 320 (w/Cummins ISX11.9 Engine) |
11-19 |
|
|
PETERBILT |
(Heavy Duty Trucks); 365 (w/Cummins ISX11.9L eng.) |
11-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 367 (w/Cummins ISX 11.9 eng.) |
11-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 367 (w/Cummins ISX15 eng.) |
10-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 389 (w/Cummins ISX 11.9 eng.) |
15-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 389 (w/Cummins ISX15 eng.) |
10-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 520 (w/Cummins ISX11.9 engine) |
17-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 567 (w/Cummins ISX11.9 eng.) |
14-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 567 (w/Cummins ISX15 Eng.) |
14-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 579 (w/ Cummins ISX 11.9 eng. ) |
14-20 |
|
|
PETERBILT |
(Heavy Duty Trucks); 579 (w/Cummins ISX15 or X15 eng.) |
18-20 |
|
|
PETERBILT |
320 |
18-11 |
6-11.9L |
|
PETERBILT |
365 |
19-11 |
6-11.9L |
|
PETERBILT |
367 |
2020 |
6-11.9L |
|
PETERBILT |
367 |
20-10 |
L6-14.9L |
|
PETERBILT |
389 |
20-15 |
6-11.9L |
|
PETERBILT |
389 |
20-10 |
L6-14.9L |
|
PETERBILT |
520 |
20-17 |
6-11.9L |
|
PETERBILT |
567 |
20-14 |
6-11.9L |
|
PETERBILT |
567 |
20-14 |
L6-14.9L |
|
PETERBILT |
579 |
20-14 |
6-11.9L |
|
PETERBILT |
579 |
20-18 |
L6-14.9L |
|
PIERCE MFG. INC. |
(Trucks); Velocity (w/Cummins ISX11.9 eng.) |
13-14 |
|
|
PIERCE MFG. INC. |
VELOCITY |
14-13 |
L6-12.8L |
|
SPARTAN |
(Motorhome/Chassis/Response); Gladiator (w/Cummins ISX15 eng.) |
11-18 |
|
|
SPARTAN |
(Motorhome/Chassis/Response); K3 (w/Cummins ISX eng.) |
12-20 |
|
|
SPARTAN |
(Motorhome/Chassis/Response); K4 (w/Cummins X15 eng.) |
18-20 |
|
|
SPARTAN MOTORS |
GLADIATOR |
18-11 |
L6-14.9L |
|
SPARTAN MOTORS |
K3 |
20-12 |
L6-14.9L |
|
SPARTAN MOTORS |
K4 |
2018 |
L6-14.9L |
|
SPARTAN MOTORS |
K4 |
2020 |
L6-14.9L |
|
TEMSA |
(Buses); TS 45 (w/Cummins ISX11.9/ISX12 eng.) |
14-19 |
|
|
TEMSA BUS |
TS45 |
19-14 |
6-11.9L |
|
VAN HOOL |
(Buses); Commuter Coach CX45 (w/Cummins ISX11.9 eng.) |
14-19 |
|
|
VAN HOOL |
(Buses); Tourist Coach TX (w/Cummins ISX11.9 eng.) |
14-19 |
|
|
VAN HOOL |
COMMUTER COACH CX |
19-14 |
6-11.9L |
|
VAN HOOL |
TOURIST COACH TX |
18-14 |
6-11.9L |
|
VOLVO |
(Heavy Duty Trucks); VNL Series (w/Cummins ISX 15 eng.) |
10-20 |
|
|
VOLVO |
(Heavy Duty Trucks); VNL730, VNL780 (w/ Cummins X15 eng.) 2017- |
||
|
VOLVO |
(Heavy Duty Trucks); VNX Series (w/Cummins X15 engine) |
2020 |
|
|
VOLVO |
VNL |
16-10 |
L6-14.9L |
|
VOLVO |
VNL |
20-18 |
L6-14.9L |
|
VOLVO |
VNL |
2017 |
L6-16.1L |
|
WESTERN STAR |
(Heavy Duty Trucks); 4700 (w/ Cummins X12 eng.) |
19-20 |
|
|
WESTERN STAR |
(Heavy Duty Trucks); 4900 Series (w/ Cummins X15 eng.) |
18-20 |
|
|
WESTERN STAR |
4900EX |
20-18 |
L6-14.9L |
|
WESTERN STAR |
4900FA |
20-18 |
L6-14.9L |
|
WESTERN STAR |
4900SA |
20-18 |
L6-14.9L |
