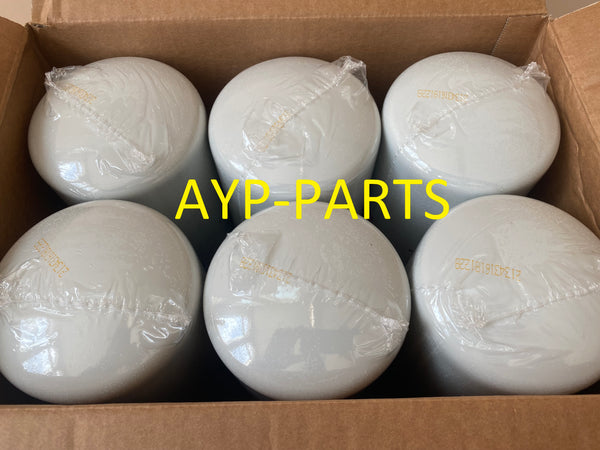

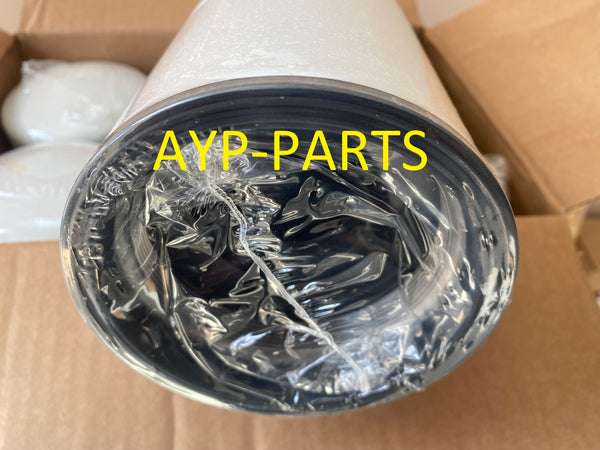

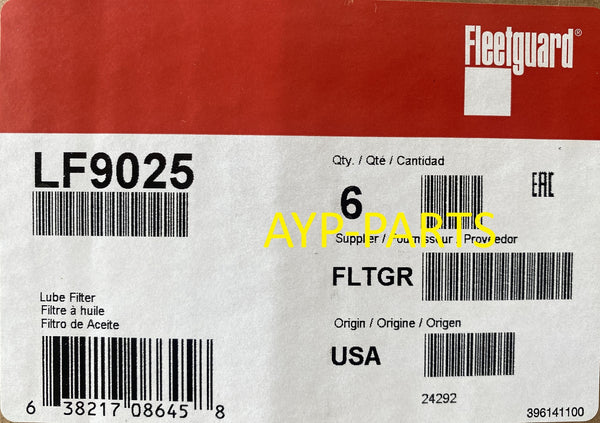

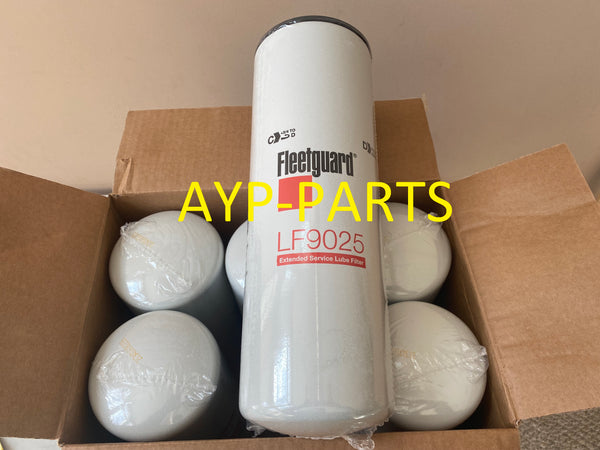

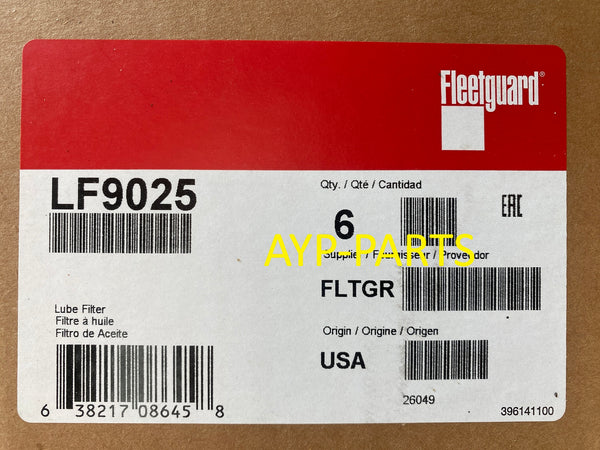

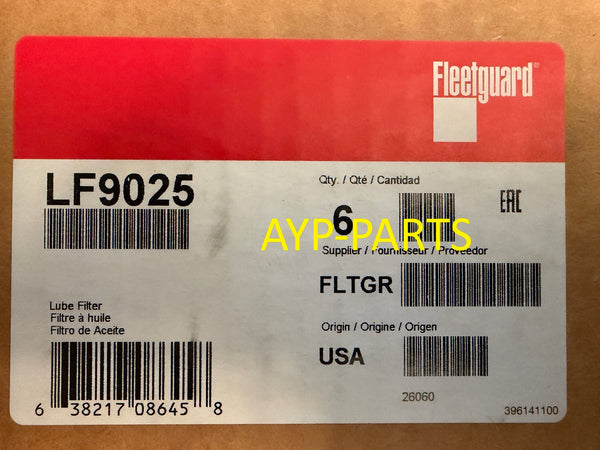

(CASE OF 6) LF9025 FLEETGUARD OIL FILTER BD7250 DT466E DT570 HT570 Maxxforce a097
Product Specifications
Condition: New
Brand: Fleetguard
Part Number: LF9025
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow/By-Pass
Media: Microglass
Height: 13.67” (347mm)*
Outer Diameter Top: 4.68” (119mm)*
Outer Diameter Bottom: Closed
Thread Size: 95X2.0mm
By-Pass Valve Setting-PSI: None
Burst Pressure-PSI: 305
Max Flow Rate: 39 GPM
Nominal Micron Rating: 35
( )* denotes metric
Interchange Part Numbers
LFP9025 PH9971 PH9971A 57744XD P552025 LF597 7744 LF552025 1842639C91 1841606C1 BD7250 2191P550656 57744 7744XD P550656 84744XD HP8025 L65965 84744 LF902500
Principle Application
IHC Trucks w/ DT466E, DT570, HT570, MaxxForce Engines (05-on)
All Applications
Make |
Model |
Year |
Engine |
BLUE BIRD BUSES |
CONVENTIONAL BUS |
2005 - 2005 |
L6 7.6L 466 CID International Turbo Diesel |
CHAMPION BUSES |
NAVISTAR DF270 |
w / International DT466 (7.6L) Engine |
|
CHAMPION BUSES |
DEFENDER DF280 |
w / Maxxforce DT (7.6L) Engine |
|
CHAMPION BUSES |
DEFENDER DF290 |
w / International DT466 (7.6L) Engine |
|
CHAMPION BUSES |
DEFENDER DF310 |
w / International DT466 (7.6L) Engine |
|
CHAMPION BUSES |
DEFENDER DF350 |
w / International DT466 (7.6L) Engine |
|
CHAMPION BUSES |
DEFENDER DF380 |
w / International DT466 (7.6L) Engine |
|
IC BUSES |
CE SERIES (PB105) |
2003 - 2009 |
L6 7.6L 466 CID IHC Turbo Diesel DT466 |
IC BUSES |
CE SERIES (PB105) |
2010 - 2011 |
L6 7.6L 466 CID IHC Turbo Diesel MaxxForce DT |
IC BUSES |
HC SERIES |
2010 - 2011 |
L6 7.6L 466 CID IHC Turbo Diesel MaxxForce DT |
IC BUSES |
RE SERIES (PB305) |
2010 - 2011 |
L6 7.6L 466 CID IHC Turbo Diesel MaxxForce DT |
IHC/NAVISTAR |
DT466 (7.6L) (2005-ON) |
||
IHC/NAVISTAR |
DT466E (7.6L) (1996-ON) |
||
IHC/NAVISTAR |
DT466HD (7.6L) (2005-ON) |
||
IHC/NAVISTAR |
DT570 (9.3L) |
||
IHC/NAVISTAR |
HT570 (9.3L) |
||
IHC/NAVISTAR |
MAXXFORCE 10 (9.3L) |
||
IHC/NAVISTAR |
MAXXFORCE 9 (9.3L) |
||
IHC/NAVISTAR |
MAXXFORCE DT (7.6L) |
||
IHC/NAVISTAR TRUCKS |
4000 SERIES |
2002 - 2008 |
L6 7.6L 466 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
4000 SERIES |
2002 - 2008 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
7000 SERIES |
2002 - 2007 |
L6 7.6L 466 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
7000 SERIES |
2005 - 2007 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
8500 |
2005 - 2007 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
8600 |
2005 - 2007 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
CXT |
2006 - 2008 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
DURASTAR |
2008 - 2016 |
L6 7.6L 466 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
DURASTAR |
2008 - 2016 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
DURASTAR |
2008 - 2010 |
V8 6.4L 389 CID |
IHC/NAVISTAR TRUCKS |
RXT |
2006 - 2008 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
TRANSTAR 8500 |
2008 - 2012 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
WORKSTAR 7300 |
2008 - 2009 |
L6 7.6L 466 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
WORKSTAR 7300 |
2008 - 2016 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
WORKSTAR 7400 |
2008 - 2009 |
L6 7.6L 466 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
WORKSTAR 7400 |
2008 - 2017 |
L6 9.3L 570 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
WORKSTAR 7500 |
2008 - 2009 |
L6 7.6L 466 CID Turbo Diesel |
IHC/NAVISTAR TRUCKS |
WORKSTAR 7500 |
2008 - 2016 |
L6 9.3L 570 CID Turbo Diesel |
