All cross numbers listed will fit and seal. If you need more exact crossovers such as size or micron ratings message me. The crosses listed are only a guide if specifics don’t matter. Use the pictures shown as a help in determining if this filter is right for you.
AYP-PARTS
We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them. If you wish to purchase any filters you don’t see listed in our store, it’s possible we have them in stock, if not we can order the filters for you. We all want the best prices of anything we buy. If you see any new filters in our store that have a higher price than other stores you see online, send me a text. Filters are also sold locally that could limit availability of filters you see online.
If there are any filters we need to order or are short on stated inventory, I will text you personally and not from a robot. Please leave a cell phone as your contact. Otherwise, you will need to contact me for status. Contacting me by text is best way.
Filters ordered Friday, Saturday, Sunday and before 10am Monday will ship out on Tuesday.
Filters ordered Monday, Tuesday and Wednesday before 10am will ship out on Thursday.
Filters ordered Wednesday, Thursday before 10am will ship out on Friday.
If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.
Thank You for visiting AYP-Parts.
No Returns offered if the part is not correct without contacting us first before order is made with the part number you need. The cross-reference numbers listed are only as a guide. Any charts you see online may not be 100% correct. Some manufactures use the same part numbers but may be a different part. We will confirm that this part will work for you when you contact us.

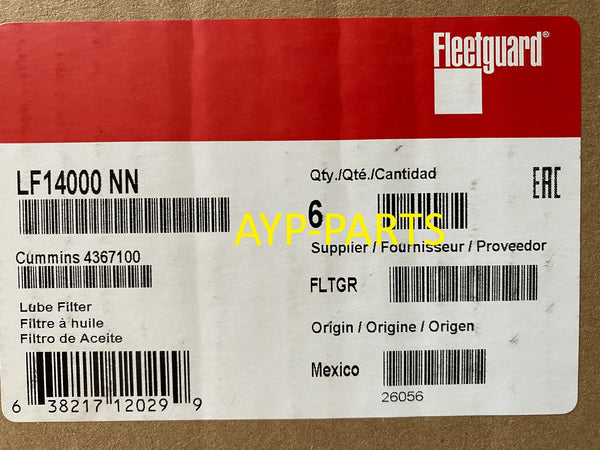

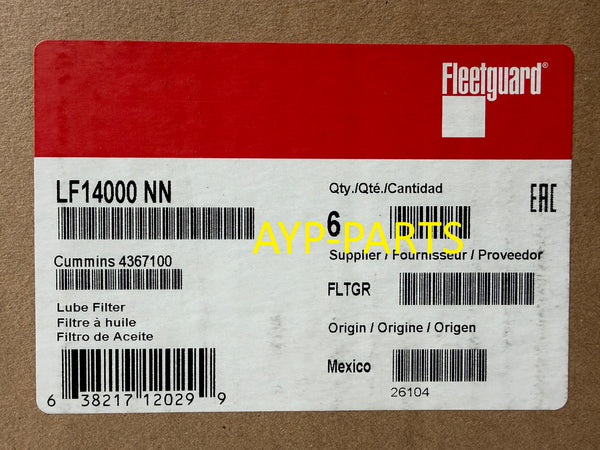

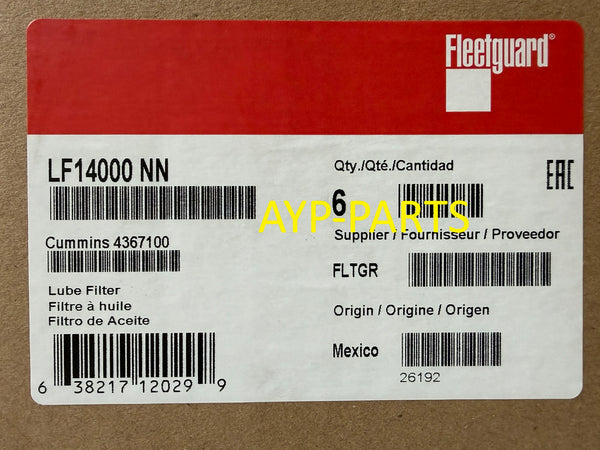

LF14000NN (CASE OF 6) FLEETGUARD OIL FILTER BD50000 Cummins ISX ISM QSX QSM a081
Product Specifications
Condition: New
Brand: Fleetguard
Part Number: LF14000NN
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow/By-Pass
Media: Microglass
Height: 294.6 mm (11.602 inch)
Outer Diameter Top: 120.3mm (4.736 inch)
Outer Diameter Bottom: Closed
Thread Size: 95 mm (3.74 inch)
By-Pass Valve Setting-PSI: None
Burst Pressure-PSI: 305
Max Flow Rate: 34-38 GPM
Nominal Micron Rating: 35
Gasket Diameters
O.D. I.D. Thk.
Attached 4.640” (118mm) 4.000” (102mm) 0.250” (6mm)*
Interchange Part Numbers
LF559000 85114044 2111169 57746XD WGL9001 LF9070 LF9031 LFP9001 LF9080 PH8960 2191P559000 4136480 WP12120 29213844 7746XD 84372057 L76612210 NP441700A1 19500499 L65328 L65329 SP4820 76612210 1216400571 SFO0901 15275439 15501271 57745XD 7745XD BD50000 P559000 P550949 PH8690 PH8691 PH8691A 4367100 86030711 57645210 40C0434 400107 WL10107
Principle Application
Cummins ISX, ISM Engines - For longer version, use LF9070.
All Applications
Make |
Model |
Year |
Engine |
CASE / CASE-IH+Loader/Tool Carriers |
1221E |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSB11 Tier III Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
1221E XR |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSB11 Tier III Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
1221F |
L 6 11.9L 11900cc 726 CID(Turbo/Intercooled QSX11.9 Tier IV Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
921C |
L 6 10.8L 10832cc 661 CID(Turbo M11 Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
921C |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSM11 Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
921C XR |
L 6 10.8L 10832cc 661 CID(Turbo M11 Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
921C XR |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSM11 Diesel Mfr Cummins ) |
|
CASE / CASE-IH+Loader/Tool Carriers |
921E |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSB11 Tier III Diesel Mfr Cummins ) |
|
CUMMINS+(Also See Consolidated+Engines) |
ISX (SIGNATURE 600) (15.0L) |
||
CUMMINS+(Also See Consolidated+Engines) |
ISX 11.9 |
||
CUMMINS+(Also See Consolidated+Engines) |
ISX 12 |
||
CUMMINS+(Also See Consolidated+Engines) |
ISX 15 (450) (15.0L) |
||
CUMMINS+(Also See Consolidated+Engines) |
QSK 19 |
||
CUMMINS+(Also See Consolidated+Engines) |
QSK 19 TIER I |
||
CUMMINS+(Also See Consolidated+Engines) |
QSK19 TIER II |
||
CUMMINS+(Also See Consolidated+Engines) |
QSK19 TIER III |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM 10.8 |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM 11 TIER II |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM11 TIER III |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM 11-G1 TIER I |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G2 TIER I |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G3 TIER III |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G4 TIER III |
||
CUMMINS+(Also See Consolidated+Engines) |
QSM 12 (12L) TIER IV FINAL |
||
CUMMINS+(Also See Consolidated+Engines) |
QST 30 Tier II/Stage IIIA |
||
CUMMINS+(Also See Consolidated+Engines) |
QSX 11.9 |
||
CUMMINS+(Also See Consolidated+Engines) |
QSX15 (15L) TIER IV FINAL |
||
CUMMINS+(Also See Consolidated+Engines) |
QSX15 INTERIM TIER IV |
||
DOOSAN/DAEWOO+Loaders |
MEGA 500-V |
(Turbo QSM11 Diesel Mfr Cummins ) |
|
FLETCHER+Mining Equipment |
J352-LS |
||
FREIGHTLINER TRUCKS & BUSES |
CASCADIA |
2012 - 2016 |
L 6 11.9L 11900cc 726 CID |
GROVE+Carriers |
GMK5200 |
||
GROVE+Cranes |
TMS700E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS700E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS700E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
GROVE+Cranes |
TMS800E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS800E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
GROVE+Cranes |
TMS800E2 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS9000E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS9000E (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
GROVE+Cranes |
TMS900E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS900E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS9100E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
GROVE+Cranes |
TMS9100E (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
HITACHI+Loaders |
ZW330 |
w / Cummins QSM11 Engine |
|
HITACHI+Loaders |
ZW550 |
w / Cummins QSK19 Engine |
|
HYUNDAI+Excavators |
ROBEX 450LC-7 |
w / Cummins QSM11 Tier II Engine |
|
HYUNDAI+Excavators |
ROBEX 480LC-9A |
w / Cummins QSX11.9 Tier IV Engine |
|
HYUNDAI+Excavators |
ROBEX 520LC-9A |
w / Cummins QSX11.9 Tier IV Engine |
|
IHC/NAVISTAR TRUCKS |
HX620 |
2016 - 2017 |
L6 14.9L 915 CID Cummins |
IHC/NAVISTAR TRUCKS |
LONESTAR |
2015 - 2016 |
L6 14.9L 915 CID Cummins |
KAWASAKI+Loaders |
90ZV |
||
KAWASAKI+Loaders |
90ZV-2 |
||
KENWORTH TRUCKS |
T660 |
2016 - 2016 |
L6 14.9L 915 CID Cummins |
KENWORTH TRUCKS |
T680 |
2013 - 2016 |
L6 14.9L 915 CID Cummins |
KENWORTH TRUCKS |
T800 SERIES |
2010 - 2016 |
L6 14.9L 915 CID Cummins |
KENWORTH TRUCKS |
T880 |
2013 - 2017 |
L6 14.9L 915 CID Cummins |
KENWORTH TRUCKS |
W900 SERIES |
2018 - 2018 |
L6 14.9L 915 CID Cummins |
LIUGONG+Excavator |
950E |
||
MANITOWOC+Equipment |
999 CRANE |
w / Cummins Diesel QSM11 Eng. |
|
NEW HOLLAND+Dozers |
D350 |
10.8L |
|
O & K+Dumpers |
D30 |
w / Cummins Diesel QSM11 Eng. |
|
O & K+Excavators |
RH23.5 |
w / Cummins Diesel QSM11 Eng. |
|
PETERBILT TRUCKS |
367 |
2008 - 2008 |
L6 10.8L 661 CID Cummins Turbo Diesel |
PETERBILT TRUCKS |
367 |
2013 - 2018 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
386 |
2010 - 2015 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
387 |
2010 - 2012 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
388 |
2010 - 2015 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
389 |
2010 - 2016 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
567 |
2013 - 2016 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
579 |
2013 - 2016 |
L6 14.9L 915 CID Cummins |
PETERBILT TRUCKS |
587 |
2011 - 2016 |
L6 14.9L 915 CID Cummins |
SCHRAMM+Drill |
T685WS |
||
VERSATILE/Buhler+Tractors |
2290 |
w / Cummins QSM11 Eng. |
|
VERSATILE/Buhler+Tractors |
2335 |
w / Cummins QSM11 Eng. |
|
VERSATILE/Buhler+Tractors |
2375 |
w / Cummins QSM11 Eng. |
|
WESTERN STAR TRUCKS |
4900FA |
2019 - 2019 |
L6 14.9L 14900CC 915CID |
WESTERN STAR TRUCKS |
4900SA |
2015 - 2016 |
L6 14.9L 14900CC 915CID |
