All cross numbers listed will fit and seal. If you need more exact crossovers such as size or micron ratings message me. The crosses listed are only a guide if specifics don’t matter. Use the pictures shown as a help in determining if this filter is right for you.
AYP-PARTS
We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them. If you wish to purchase any filters you don’t see listed in our store, it’s possible we have them in stock, if not we can order the filters for you. We all want the best prices of anything we buy. If you see any new filters in our store that have a higher price than other stores you see online, send me a text. Filters are also sold locally that could limit availability of filters you see online.
If there are any filters we need to order or are short on stated inventory, I will text you personally and not from a robot. Please leave a cell phone as your contact. Otherwise, you will need to contact me for status. Contacting me by text is best way.
Filters ordered Friday, Saturday, Sunday and before 10am Monday will ship out on Tuesday.
Filters ordered Monday, Tuesday and Wednesday before 10am will ship out on Thursday.
Filters ordered Wednesday, Thursday before 10am will ship out on Friday.
If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.
Thank You for visiting AYP-Parts.
No Returns offered if the part is not correct without contacting us first before order is made with the part number you need. The cross-reference numbers listed are only as a guide. Any charts you see online may not be 100% correct. Some manufactures use the same part numbers but may be a different part. We will confirm that this part will work for you when you contact us.

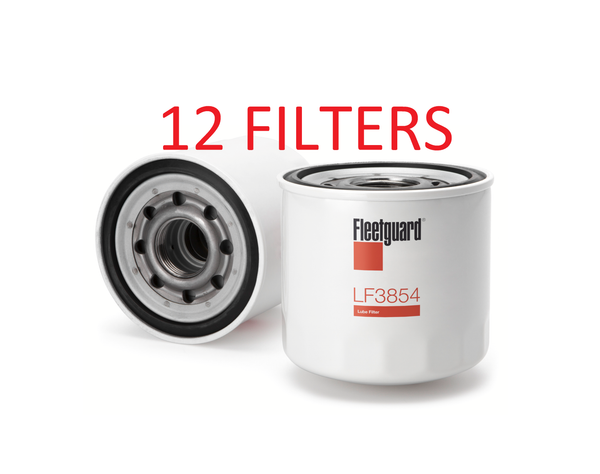

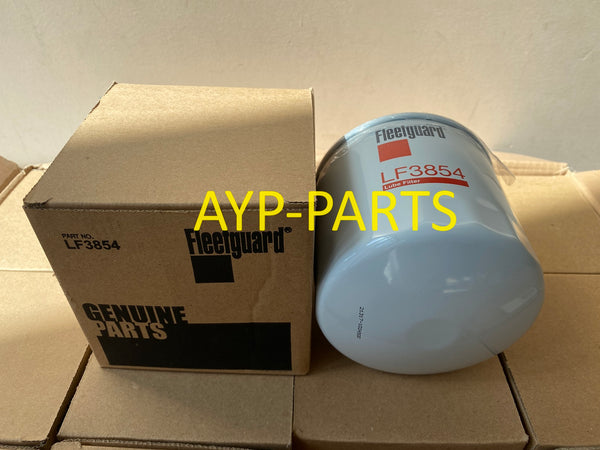

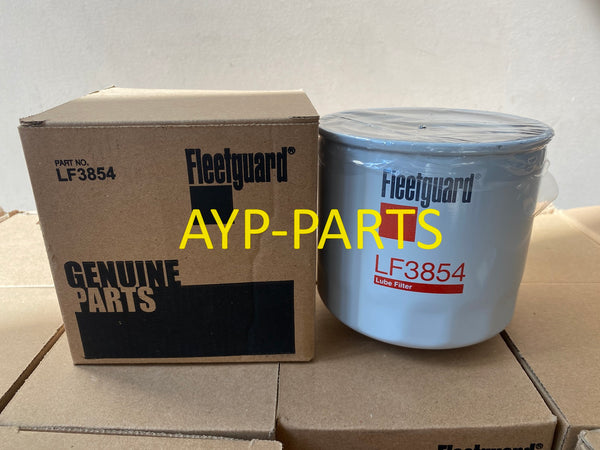

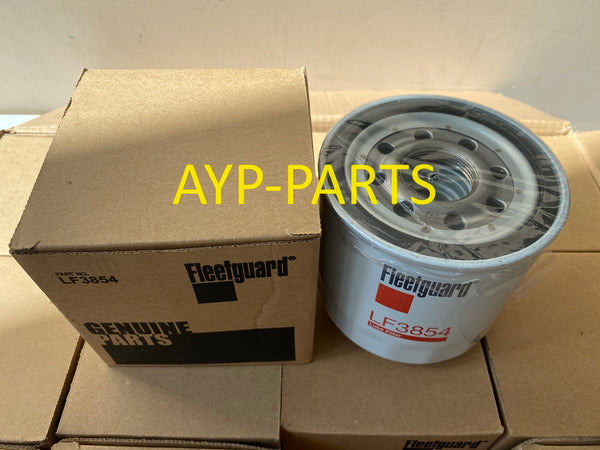

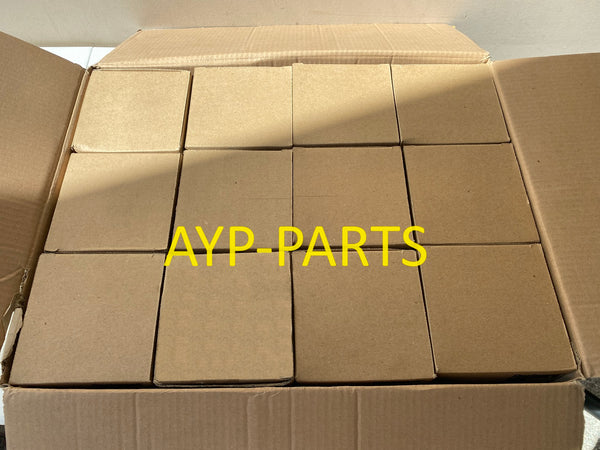

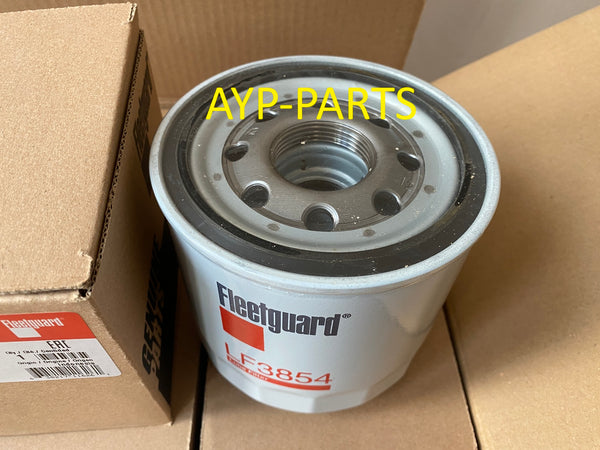

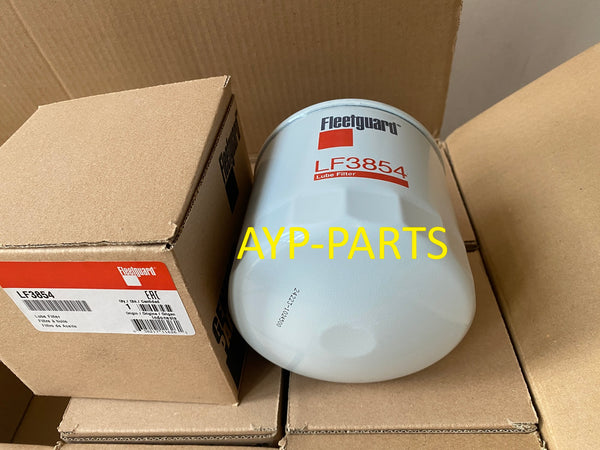

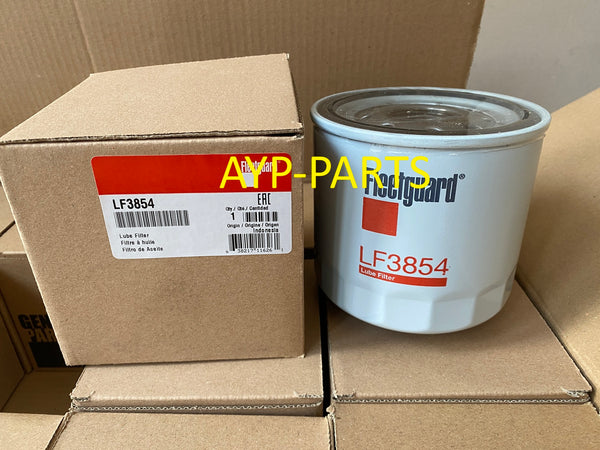

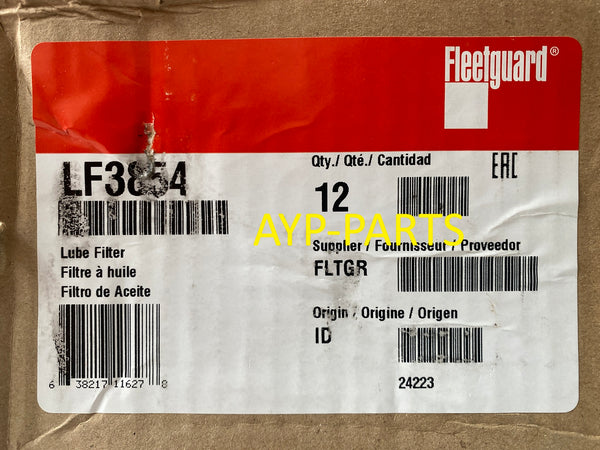

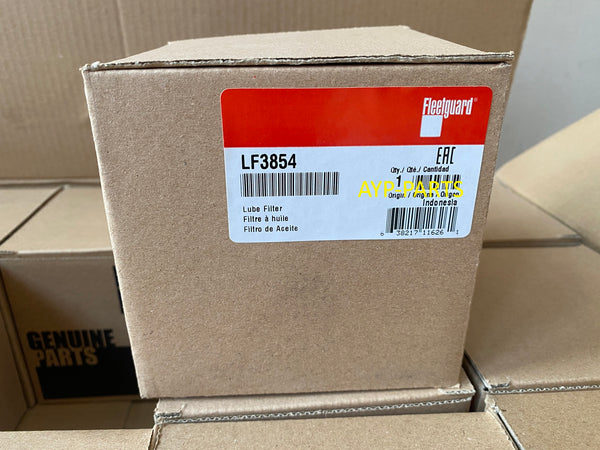

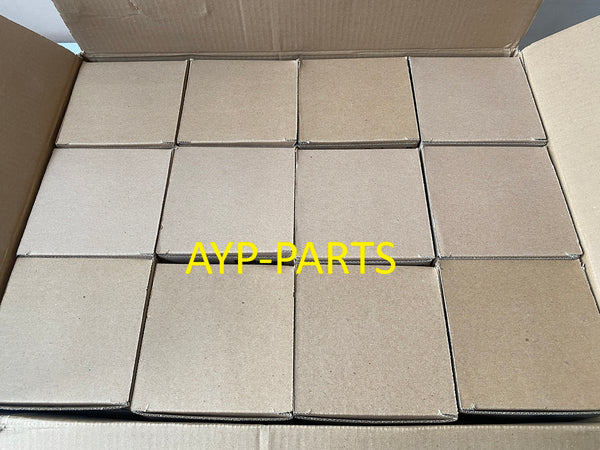

(CASE OF 12) LF3854 FLEETGUARD OIL FILTER BD7159 a203
Product Specifications
Condition: New
Brand: Fleetguard
Part Number: LF3854
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow/By-Pass
Media: Enhanced Cellulose
Height: 5.04 (128)*
Outer Diameter Top: 4.668 (119)*
Outer Diameter Bottom: Closed
Thread Size: 1 1/2-12
By-Pass Valve Setting-PSI: 19
Burst Pressure-PSI: 320
Max Flow Rate: 28-30 GPM
Nominal Micron Rating: 22
( )* denotes metric
Gasket Diameters
O.D. I.D. Thk.
Attached 4.32 (110)* 3.8 (97)* 0.365 (9)*
Principle Application
Various Isuzu Diesel Engines & GM "W" Series Tilt-Cab Trucks.
Interchange Part Numbers
8943381810 8943381811 8970967770 BD7159 P502042 HPH3690FP 57521 IO3319 IO3322 91521 84521 C1562 FO1077 GP359 LF507 92956285 97148270 2906548000 5873104880 5873104881 8971482700 8971482701 8973713340 L7521 LFP5964 WP1240 T6757 7521 L35495 J8610077 J8610181 Z476 Z767 C1515 C1519 SF518 SFO6777 SFO8181 C711 C7111 C518 LF502046 PF947L T6757 LFR83632 R7521 25014120 94338181 97046464 97049282 97096777 97136470 97719921 LF273 LF281 AL6354 2906546000 8970464641 8970492820 8971364700 8971482800 LFP2339 L30279 L46066 CFS1215 LO1206K
All Applications
|
Make |
Model |
Year |
Engine |
|
CHEVROLET |
(Heavy Duty Trucks); LCF4500HD, LCF4500XD (w/Isuzu 5.2L Engine) |
17-20 |
|
|
CHEVROLET |
(Heavy Duty Trucks); LCF5500HD, LCF5500XD (w/Isuzu 5.2L Engine) |
17-20 |
|
|
CHEVROLET |
(Heavy Duty Trucks); LCF6500XD (w/Isuzu 5.2L Engine) |
18-20 |
|
|
CHEVROLET |
(Heavy Duty Trucks); W3500, W4500, W5500 (w/Isuzu 4HE1-TC eng.) |
99-04 |
|
|
CHEVROLET |
(Heavy Duty Trucks); W3500, W4500, W5500, W5500HD (w/4HK1-TC eng.) |
08-10 |
|
|
CHEVROLET |
(Heavy Duty Trucks); W3500, W4500, W5500, W5500HD (w/Isuzu 4HK1 5.2L eng.) |
05-07 |
|
|
CHEVROLET |
LCF 4500HD |
20-17 |
L4-5.2L |
|
CHEVROLET |
LCF 4500XD |
20-17 |
L4-5.2L |
|
CHEVROLET |
LCF 5500HD |
20-17 |
L4-5.2L |
|
CHEVROLET |
LCF 5500XD |
20-17 |
L4-5.2L |
|
CHEVROLET |
LCF 6500XD |
20-18 |
L4-5.2L |
|
CHEVROLET |
W3500 TILTMASTER |
04-99 |
L4-4.8L |
|
CHEVROLET |
W3500 TILTMASTER |
09-05 |
L4-5.2L |
|
CHEVROLET |
W4500 TILTMASTER |
04-99 |
L4-4.8L |
|
CHEVROLET |
W4500 TILTMASTER |
10-05 |
L4-5.2L |
|
CHEVROLET |
W5500 TILTMASTER |
04-99 |
L4-4.8L |
|
CHEVROLET |
W5500 TILTMASTER |
10-05 |
L4-5.2L |
|
CHEVROLET |
W5500HD TILTMASTER |
2004 |
L4-4.8L |
|
CHEVROLET |
W5500HD TILTMASTER |
09-05 |
L4-5.2L |
|
GMC |
(Heavy Duty Trucks); W3500, W4500, W5500 (w/Isuzu 4HE1-TC eng.) |
99-04 |
|
|
GMC |
(Heavy Duty Trucks); W3500, W4500, W5500, W5500HD (w/4HK1-TC eng.) |
08-10 |
|
|
GMC |
(Heavy Duty Trucks); W3500, W4500, W5500, W5500HD (w/Isuzu 4HK1 5.2L eng.) |
05-07 |
|
|
GMC |
W3500 FORWARD |
04-99 |
L4-4.8L |
|
GMC |
W3500 FORWARD |
08-05 |
L4-5.2L |
|
GMC |
W4500 FORWARD |
04-99 |
L4-4.8L |
|
GMC |
W4500 FORWARD |
10-05 |
L4-5.2L |
|
GMC |
W5500 FORWARD |
04-99 |
L4-4.8L |
|
GMC |
W5500 FORWARD |
10-05 |
L4-5.2L |
|
GMC |
W5500HD FORWARD |
2004 |
L4-4.8L |
|
GMC |
W5500HD FORWARD |
09-05 |
L4-5.2L |
|
ISUZU |
(Heavy Duty Trucks); ELF 250 (w/4HF1T 4.8L eng.) |
||
|
ISUZU |
(Heavy Duty Trucks); FTR (w/4HK1 engine) |
18-19 |
|
|
ISUZU |
(Heavy Duty Trucks); NPR, NQR (w/4HE1-TC eng.) |
98-04 |
|
|
ISUZU |
(Heavy Duty Trucks); NPR, NQR, NRR (w/4HK1 5.2L eng.) |
04-07 |
|
|
ISUZU |
FTR |
20-18 |
L4-5.2L |
|
ISUZU |
NPR |
04-98 |
L4-4.8L |
|
ISUZU |
NPR |
09-05 |
L4-5.2L |
|
ISUZU |
NPR-HD |
04-99 |
L4-4.8L |
|
ISUZU |
NPR-HD |
20-05 |
L4-5.2L |
|
ISUZU |
NPR-XD |
19-15 |
L4-5.2L |
|
ISUZU |
NQR |
04-98 |
L4-4.8L |
|
ISUZU |
NQR |
20-05 |
L4-5.2L |
|
ISUZU |
NRR |
20-05 |
L4-5.2L |
