(4 PACK) LF3000 FLEETGUARD OIL FILTER BD103 For Cummins Engines, Komatsu International a647

Sale price $128.99 Regular price $279.86

All cross numbers listed will spin on and seal.  If you need more exact crossovers such as size or micron ratings message me.  The crosses listed are only a guide if specifics don’t matter.  Use the pictures shown as a help in determining if this filter is right for you.

                                                AYP-PARTS

We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them.  We also purchase filters from stores going out of business or old inventory stores want to get rid of. If you wish to purchase any filters you don’t see listed in our store most likely I can order these filters for you. All Baldwin and Fleetguard filters are sold by the case unless smaller lots are shown. If you don’t need a full case message us and we may be able to sell lesser quantities.  We all want the best prices of anything we buy. If you see any new filters in the store that have a higher price than other stores you see in online, send me a message.

If there are any filters, I need to order you will be updated by a personal text on progress.  First if I need to order them and about once a week thereafter.  Please leave a cell phone as your contact.

If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.

Thank You for visiting AYP-Parts.



No Returns offered if the part is not correct without contacting us first before order is made with the part number you need.  The cross-reference numbers listed are only as a guide.  Any charts you see online may not be 100% correct.  Some manufactures use the same part numbers but may be a different part.  We will confirm that this part will work for you when you contact us.

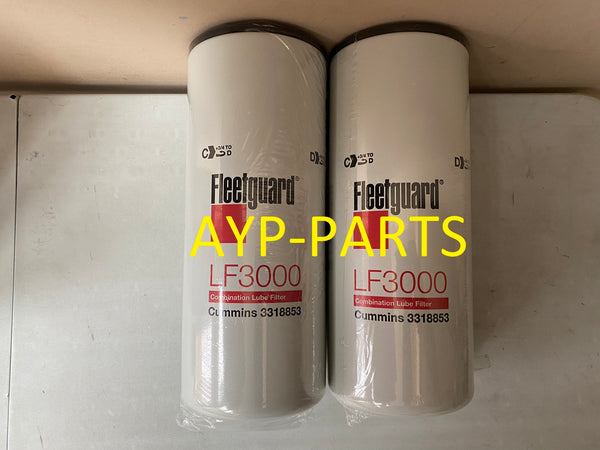

(4 PACK) LF3000 FLEETGUARD OIL FILTER BD103 For Cummins Engines, Komatsu International a647

Product Specifications
Condition: New
Brand: Fleetguard
Part Number: LF3000
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow/By-Pass
Media: Enhanced Cellulose
Height: 11.228” (285mm)*
Outer Diameter Top: 4.668” (119mm)*
Outer Diameter Bottom: Closed
Thread Size: 2 1/4-12
By-Pass Valve Setting-PSI: None
Beta Ratio: 2/20 = 10/22
Burst Pressure-PSI: 500
Max Flow Rate: 28 GPM
Nominal Micron Rating: 35
( )* denotes metric

Gasket Diameters
               O.D.                     I.D.                     Thk.
Attached 4.362” (111mm)* 4.002” (102mm)* 0.425” (11mm)*

Principle Application:
Cummins Engines, Komatsu (Full-Flow/By-Pass - shorter version is LF3548) For upgrade use LF9009.

Interchange Part Numbers:
BD103 P553000 PF1217 92748 85748 30003073 3I1265 LFP3000 PH6349A LF448 LF448XS LF515 4228688 4470720 42286881 71497005 2910550 2910965 AT193242 RE44647 76817573 6742012430 6742014120 3H1831 C8H0076 2191P553000 WP12121 WP12300 1077749M1 EFL381 FL819 1748 1294153H1 9703112 75285999 8900130271 L54519 L56019 15266844 15274299 12969457 991218853 303509517 51748 84465096 84485647 8900126397 2266551 10027047 3318853 711049 72501533 HPH6349AFP ABPN10GLF3000 PF1217 15067 A3000 711049 AG711049 72501533 SFO3001 SDF74 4962810 SP577 1310032243 2653161527 5580006641 9772040030 180654 A4027536 E6726 92748MP 92748XD 9P909707 31701002 31780003 921214022 0986AF0039 JC039 86029144 85748 85748MP 84465096 007101T1 3621379M1 366700A1 441703A1 907101T1 B2750548 E8HZ6731A 54429 55429 JLX350A VO1801 VO1807 LSF5065 2135 3401544 3825970 XLF7000 XLF75000 47400023 247190148 65055105023 1288430 350030 531107 1290006H1 1294153H91 902039 5608835 1355360 1355361 E12969457 76194691 ZP51 53C0053 LFR83000 LFR83000TP LFR83639 LFR89009 NL300 97520500210 9576P553000 BG2X6731CA E9PJ6714AA F8HZ6731A C3401544A0571A D1700240 DNP553000 3381644H1 22222 GP3000 GP3000L GP3001 9038S Z239 15162 A15007 HDA15007 H300W03 H300W07 ZZ11068 SO3000 E0A000080 L4228688 1476559 11E170130 11NA70110 04LF3000 04LF9009 22177737 35378546 53161527 57165763 57752990 F03000H 02910550A  YE3318853 YELF3000 YN50VU0001D5 6742014540 1295224H1 21M0111510 CU3318853, CU3825970, CULF3000, CULF9009, FBD103, 6D300U, D300, D300MO, D300U, D330, C3318853, 851011975, 25081, 0C304, KFO03T2690, OC304, 4136530, MPL5929, 707154A1, 23160167, 1748MP, 8962110113, L441703A1, NP441703A1, 1220828, 1487676, 8482339, PERI332, AD3000, 19500489, 6935219, PER4519, RL332, J8613000, J8619009, P553639, RL3000, LUS8853, HDZ374, C57061, C5707, 11712405, 9991218853, F318853, B222100000063, 330560035, SF4692, SP4540, SP4692, 1216400541, 1216400561, 1216400591, 88291001891, SFO3000, 4026996, PSL300, HDO7, D300TJ, F428395, 2341100, 688744, T081044, V9703112, LF553000, XL553000, 3130934, M12969457, V1113896, 811385, 303506517, 195743, 551748, WGL9099, WGL9199
