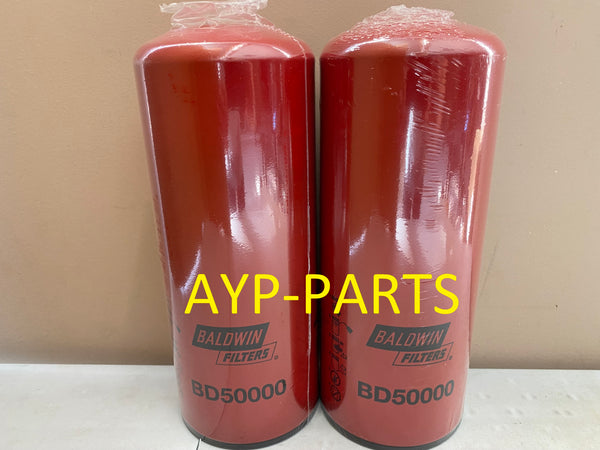

BD50000 (2 PACK) BALDWIN OIL FILTER LF14000NN CUMMINS ISX ISM QSX QSM a018
Product Specifications
Part Number: BD50000
Style: Spin-On Lube Filter
Service: Lube
Type: Full Flow/By-Pass
Media: Microglass
Height: 294.6 mm (11.602 inch)
Outer Diameter Top: 120.3mm (4.736 inch)
Outer Diameter Bottom: Closed
Thread Size: 95 mm (3.74 inch)
By-Pass Valve Setting-PSI: None
Burst Pressure-PSI: 305
Max Flow Rate: 34-38 GPM
Nominal Micron Rating: 35
Gasket Diameters
O.D. I.D. Thk.
Attached 4.640” (118mm) 4.000” (102mm) 0.250” (6mm)*
Interchange Part Numbers
LF559000 85114044 2111169 57746XD WGL9001 LF9070 LF9031 LFP9001 LF9080 PH8960 2191P559000 4136480 WP12120 29213844 7746XD 84372057 L76612210 NP441700A1 19500499 L65328 L65329 SP4820 76612210 1216400571 SFO0901 15275439 15501271 57745XD 4367100 86030711 57645210 40C0434 7745XD P559000 P550949 PH8690 PH8691 PH8691A 4331005 ABPN10GLF9000 ABPN10GLF9001 5580011671 BD7153 BD7154 BD7355 91745 91746 91748 91745XD 91746XD 84745 84746 84748 84746XD 7612210 324617A1 441700A1 LF9001 STX440 LFP9000 VO2079 2101869 2882674 3101868 3101869 3406809 3406810 340680900 340681000, XLF7111, XLF7222, 47400034, LF9000, LF9011, LF9018, LFR89000, LFR89001, LFR89011, LFR89018, 3101869X0571A, TPH8691AFP, GP9000, GP9001, A047950, LF498, LF499, SO10020, E12979663, E12979905, 1415822, 04LF9031, 54662028, PMLF9000, YE3101868, YE3101869, YE3406810, YELF9000, 6002111340, 6002111341 6216545110 E6002111340 D390, D391, LFP9007, LFP9008, WP12001, 7745, 7746, 7748, J8610001, SP4850, 57745, 57746, 57748, PF1269, 5789934600, BD50000, 84385571, 87408494, 8900131282, --LSF5190, 2874490, 2882674, 3101869, 3406809, 4367100, 4906633, 47400034P, 97400034P, DBL7900, ELF7900, P550949, P559000, P559581, P559589, P559600, P559609, P559617, P559622, P559626, 15500647, E12979663, 89002459, GP9001, 9049108765, 9414101527, 9414101645, LF499, 11NB70110, 23020407, RE574468, HP8006, 9239440174, C516, OC516, LV50V00005P1, 6002111340, 6216545110, 10332314, LFP9001, A047950, WP12120, WP12330, 7746, 7746XD, 76194865, L65329, 1216400571, SFO0901, 15275439, 15501271, 86030711, 57746, 57746XD
Principle Application
Cummins ISX, ISM Engines - For longer version, use BF7153.
All Applications
|
Make |
Model |
Year |
Engine |
|
CASE / CASE-IH+Loader/Tool Carriers |
1221E |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSB11 Tier III Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
1221E XR |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSB11 Tier III Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
1221F |
L 6 11.9L 11900cc 726 CID(Turbo/Intercooled QSX11.9 Tier IV Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
921C |
L 6 10.8L 10832cc 661 CID(Turbo M11 Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
921C |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSM11 Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
921C XR |
L 6 10.8L 10832cc 661 CID(Turbo M11 Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
921C XR |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSM11 Diesel Mfr Cummins ) |
|
|
CASE / CASE-IH+Loader/Tool Carriers |
921E |
L 6 10.8L 10832cc 661 CID(Turbo/Intercooled QSB11 Tier III Diesel Mfr Cummins ) |
|
|
CUMMINS+(Also See Consolidated+Engines) |
ISX (SIGNATURE 600) (15.0L) |
||
|
CUMMINS+(Also See Consolidated+Engines) |
ISX11.9 (11.9L) |
||
|
CUMMINS+(Also See Consolidated+Engines) |
ISX12 |
||
|
CUMMINS+(Also See Consolidated+Engines) |
ISX15 (450) (15.0L) |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSK19 |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSK19 TIER I |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSK19 TIER II |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSK19 TIER III |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM10.8 |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM11 TIER II |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM11 TIER III |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G1 TIER I |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G2 TIER I |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G3 TIER III |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM11-G4 TIER III |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSM12 (12L) TIER IV FINAL |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QST30 Tier II/Stage IIIA |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSX11.9 |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSX15 (15L) TIER IV FINAL |
||
|
CUMMINS+(Also See Consolidated+Engines) |
QSX15 INTERIM TIER IV |
||
|
DOOSAN/DAEWOO+Loaders |
MEGA 500-V |
(Turbo QSM11 Diesel Mfr Cummins ) |
|
|
FLETCHER+Mining Equipment |
J352-LS |
||
|
FREIGHTLINER TRUCKS & BUSES |
CASCADIA |
2012 - 2016 |
L 6 11.9L 11900cc 726 CID |
|
GROVE+Carriers |
GMK5200 |
||
|
GROVE+Cranes |
TMS700E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS700E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS700E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
|
GROVE+Cranes |
TMS800E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS800E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
|
GROVE+Cranes |
TMS800E2 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS9000E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS9000E (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
|
GROVE+Cranes |
TMS900E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS900E07 (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS9100E (TRUCK/CRANE UNIT) |
w / Cummins Diesel ISM Eng. |
|
|
GROVE+Cranes |
TMS9100E (TRUCK/CRANE UNIT) |
w / Cummins Diesel QSM Eng. |
|
|
HITACHI+Loaders- |
ZW330 |
w / Cummins QSM11 Engine |
|
|
HITACHI+Loaders |
ZW550 |
w / Cummins QSK19 Engine |
|
|
HYUNDAI+Excavators |
ROBEX 450LC-7 |
w / Cummins QSM11 Tier II Engine |
|
|
HYUNDAI+Excavators |
ROBEX 480LC-9A |
w / Cummins QSX11.9 Tier IV Engine |
|
|
HYUNDAI+Excavators |
ROBEX 520LC-9A |
w / Cummins QSX11.9 Tier IV Engine |
|
|
IHC/NAVISTAR TRUCKS |
HX620 |
2016 - 2017 |
L6 14.9L 915 CID Cummins |
|
IHC/NAVISTAR TRUCKS |
LONESTAR |
2015 - 2016 |
L6 14.9L 915 CID Cummins |
|
KAWASAKI+Loaders |
90ZV |
||
|
KAWASAKI+Loaders |
90ZV-2 |
||
|
KENWORTH TRUCKS |
T660 |
2016 - 2016 |
L6 14.9L 915 CID Cummins |
|
KENWORTH TRUCKS |
T680 |
2013 - 2016 |
L6 14.9L 915 CID Cummins |
|
KENWORTH TRUCKS |
T800 SERIES |
2010 - 2016 |
L6 14.9L 915 CID Cummins |
|
KENWORTH TRUCKS |
T880 |
2013 - 2017 |
L6 14.9L 915 CID Cummins |
|
KENWORTH TRUCKS |
W900 SERIES |
2018 - 2018 |
L6 14.9L 915 CID Cummins |
|
LIUGONG+Excavator |
950E |
||
|
MANITOWOC+Equipment |
999 CRANE |
w / Cummins Diesel QSM11 Eng. |
|
|
NEW HOLLAND+Dozers |
D350 |
10.8L |
|
|
O & K+Dumpers |
D30 |
w / Cummins Diesel QSM11 Eng. |
|
|
O & K+Excavators |
RH23.5 |
w / Cummins Diesel QSM11 Eng. |
|
|
PETERBILT TRUCKS |
367 |
2008 - 2008 |
L6 10.8L 661 CID Cummins Turbo Diesel |
|
PETERBILT TRUCKS |
367 |
2013 - 2018 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
386 |
2010 - 2015 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
387 |
2010 - 2012 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
388 |
2010 - 2015 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
389 |
2010 - 2016 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
567 |
2013 - 2016 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
579 |
2013 - 2016 |
L6 14.9L 915 CID Cummins |
|
PETERBILT TRUCKS |
587 |
2011 - 2016 |
L6 14.9L 915 CID Cummins |
|
SCHRAMM+Drill |
T685WS |
||
|
VERSATILE/Buhler+Tractors |
2290 |
w / Cummins QSM11 Eng. |
|
|
VERSATILE/Buhler+Tractors |
2335 |
w / Cummins QSM11 Eng. |
|
|
VERSATILE/Buhler+Tractors |
2375 |
w / Cummins QSM11 Eng. |
|
|
WESTERN STAR TRUCKS |
4900FA |
2019 - 2019 |
L6 14.9L 14900CC 915CID |
|
WESTERN STAR TRUCKS |
4900SA |
2015 - 2016 |
L6 14.9L 14900CC 915CID |
