All cross numbers listed will fit and seal. If you need more exact crossovers such as size or micron ratings message me. The crosses listed are only a guide if specifics don’t matter. Use the pictures shown as a help in determining if this filter is right for you.
We are a Baldwin and Fleetguard Filter distributor that purchases new filters directly from them. If you wish to purchase any filters you don’t see listed in our store, it’s possible we have them in stock, if not we can order the filters for you. We all want the best prices of anything we buy. If you see any new filters in our store that have a higher price than other stores you see online, send me a text. Filters are also sold locally that could limit availability of filters you see online.
If there are any filters we need to order or are short on stated inventory, I will text you personally and not from a robot. Please leave a cell phone as your contact. Otherwise, you will need to contact me for status. Contacting me by text is best way.
Filters ordered Friday, Saturday, Sunday and before 10am Monday will ship out on Tuesday.
Filters ordered Monday, Tuesday and Wednesday before 10am will ship out on Thursday.
Filters ordered Wednesday, Thursday before 10am will ship out on Friday.
If you have a shop and those darn filters are just collecting dust. Send me a list of filters you have and how much you are asking and your location. I will look up part numbers you send to find the wholesale value and send an offer to you. The more presentable the filters are the more I can offer.
Thank You for visiting AYP-Parts.
No Returns offered if the part is not correct without contacting us first before order is made with the part number you need. The cross-reference numbers listed are only as a guide. Any charts you see online may not be 100% correct. Some manufactures use the same part numbers but may be a different part. We will confirm that this part will work for you when you contact us.

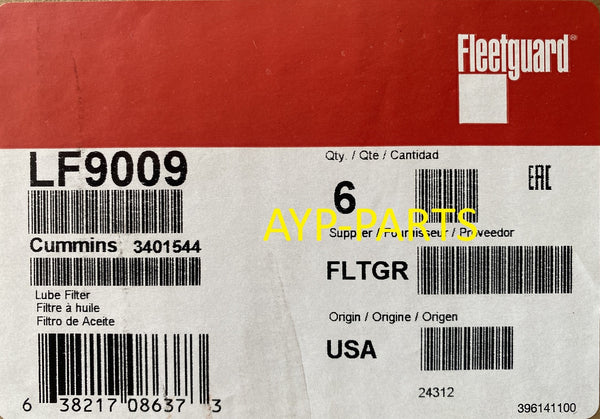

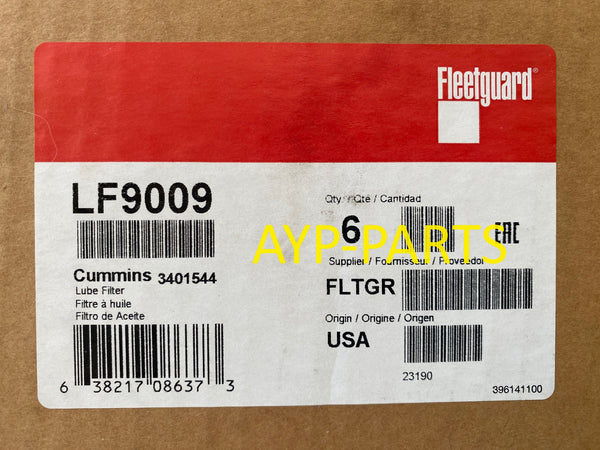

(CASE OF 6) LF9009 FLEETGUARD OIL FILTER BD7309 Cummins Case Kobelco Komatsu IHC Volvo a183
Part Number: LF9009
Style: Spin-On Lube Filter
Type: Full Flow/By-Pass
Height: 11.364” (289mm)*
Outer Diameter Top: 4.668” (119mm)*
Outer Diameter Bottom: Closed
Thread Size: 2 1/4-12
By-Pass Valve Setting-PSI: None
Beta Ratio: 2/20/75=5/27/37
Burst Pressure-PSI: 500
Max Flow Rate: 28 GPM
Nominal Micron Rating: 30
( )* denotes metric
O.D. I.D. Thk.
Attached 4.440” (113mm)* 4.002” (102mm)* 0.425” (11mm)*
Interchange Part Numbers:
SP1383 BD7309 P553000 PF1217 92748 85748 AT193242 1216400561 84465096 366700A1 441703A1 LFR89009 BG2X6731CA 22222 53161527 LF515 CULF9009 2910965 21M0111510 6742014540 WP12121 1748 1220828 B2750548 303509517 51748XD 51748 3401544 72501533 ABPN10GLF9009
Upgrade of LF3000
